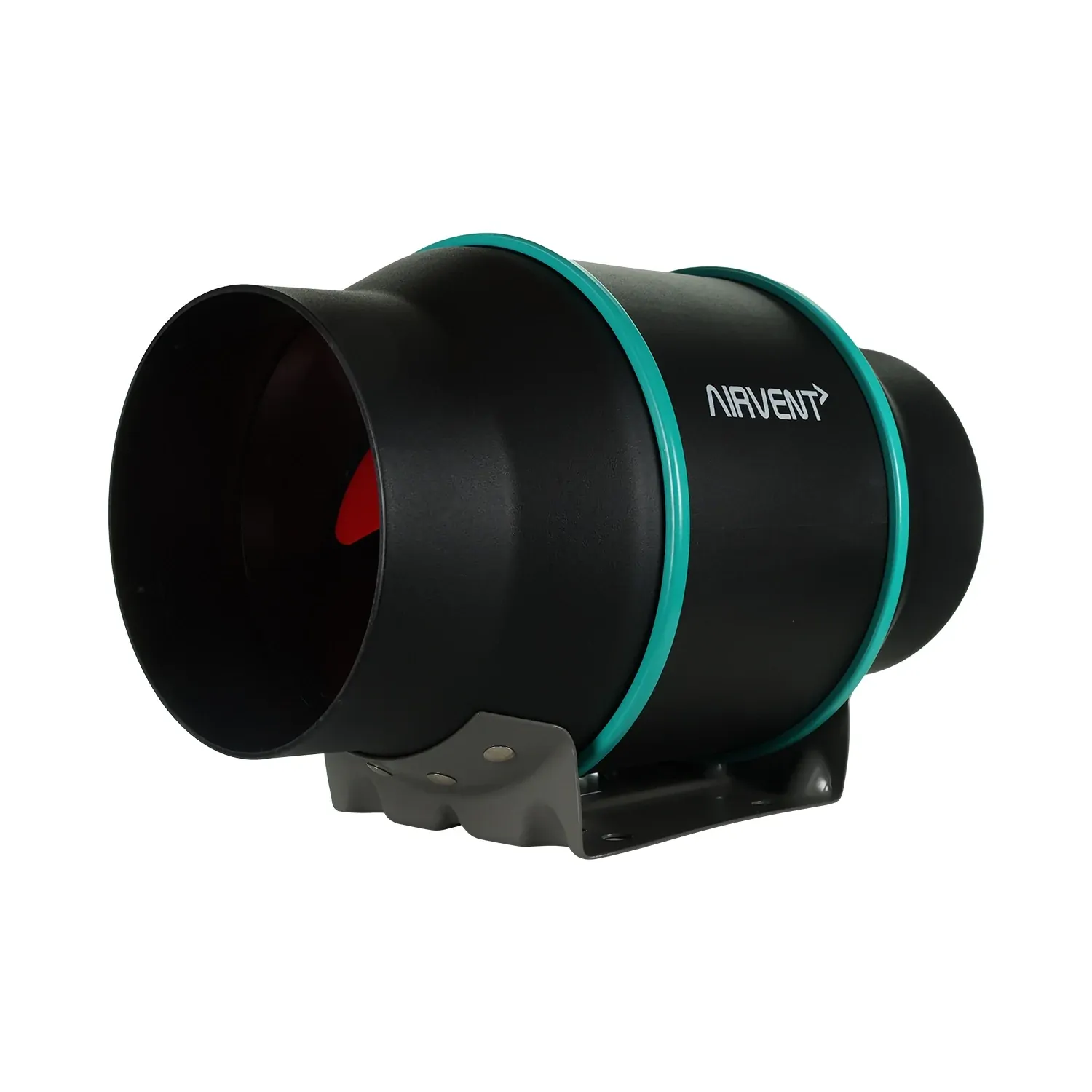

The Airvent ECIF50-150 is a 150mm inline mixed flow fan with an EC motor rated 50W, running on 240V at 0.3A. It is rated at 151 litres per second against 113 Pa of static pressure, turning at 2474 RPM. The ECIF50-150 uses a mixed flow impeller, combining axial and centrifugal characteristics to hold airflow while limiting noise. It arrives with a 1.2 metre lead and a three-pin plug fitted.
Specifying the largest available fan is a common route to a ducted system noisier than the application requires. The ECIF50-150 is rated at 151 L/s against 113 Pa, covering most domestic bathroom and laundry runs without additional capacity. Sound pressure measures 40 dBA at the inlet and 38 dBA at the outlet, both at 3 metres. The mixed flow impeller sustains that volume against duct resistance where an axial impeller would stall.
Speed control operates through an external potentiometer rather than a control incorporated in the fan, so the controller becomes a separate item on the order. Once the grilles and terminal are installed, the fan can be moderated to suit the commissioned system. At 2.3kg and 315mm long the unit remains light enough for structural support without additional provision. Sigrist Design states 2019 and 2022 NCC/BCA Section J compliance.
The ECIF50-150 is an in-duct fan and does not mount at the ceiling or wall face, so ducting, a grille, and a terminal are all required. Speed adjustment needs an external potentiometer, which is not supplied with the fan. A system carrying more resistance than the rated 113 Pa delivers less than 151 L/s, so calculate the run before relying on the duty figure.
(ECIF50-150)
It is used to move large volumes of air through ducting for extraction or air transfer in bigger spaces.
In ceiling cavities or duct runs for bathrooms, kitchens, laundries or commercial ventilation systems.
Yes. The higher airflow and mixed flow design make it suitable for bigger spaces and longer ducts.
Yes. It has adjustable speed control to fine tune airflow during setup.
Yes. It can be used for steady extraction or balanced air movement systems.
Yes. Sparky Direct stocks the Airvent ECIF50-150 with fast dispatch and delivery across Australia.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Airvent |
| SKU | ECIF50-150 |
| Model # | ECIF50-150 |
| Barcode # | 0744109938115 |
| Package Weight | 2.980kg |
| TYPE | VALUE |
|---|---|
| Type | Inline Fan |
| Brand | Airvent |
| Rated Current (A) | 0.3 |
| Height (mm) | 209 |
| Width (mm) | 225 |
| Length (mm) | 315 |
| Mounting | Inline |
| Voltage (V) | 240 |
| Diameter (mm) | 150 |
| Air Flow (m3/h) | 544 |
| Fan Speed (RPM) | 2474 |
| Fan Wattage (W) | 50 |
