Clipsal | Iconic Rotary Push Dimmer Mechanism 350W | Vivid White

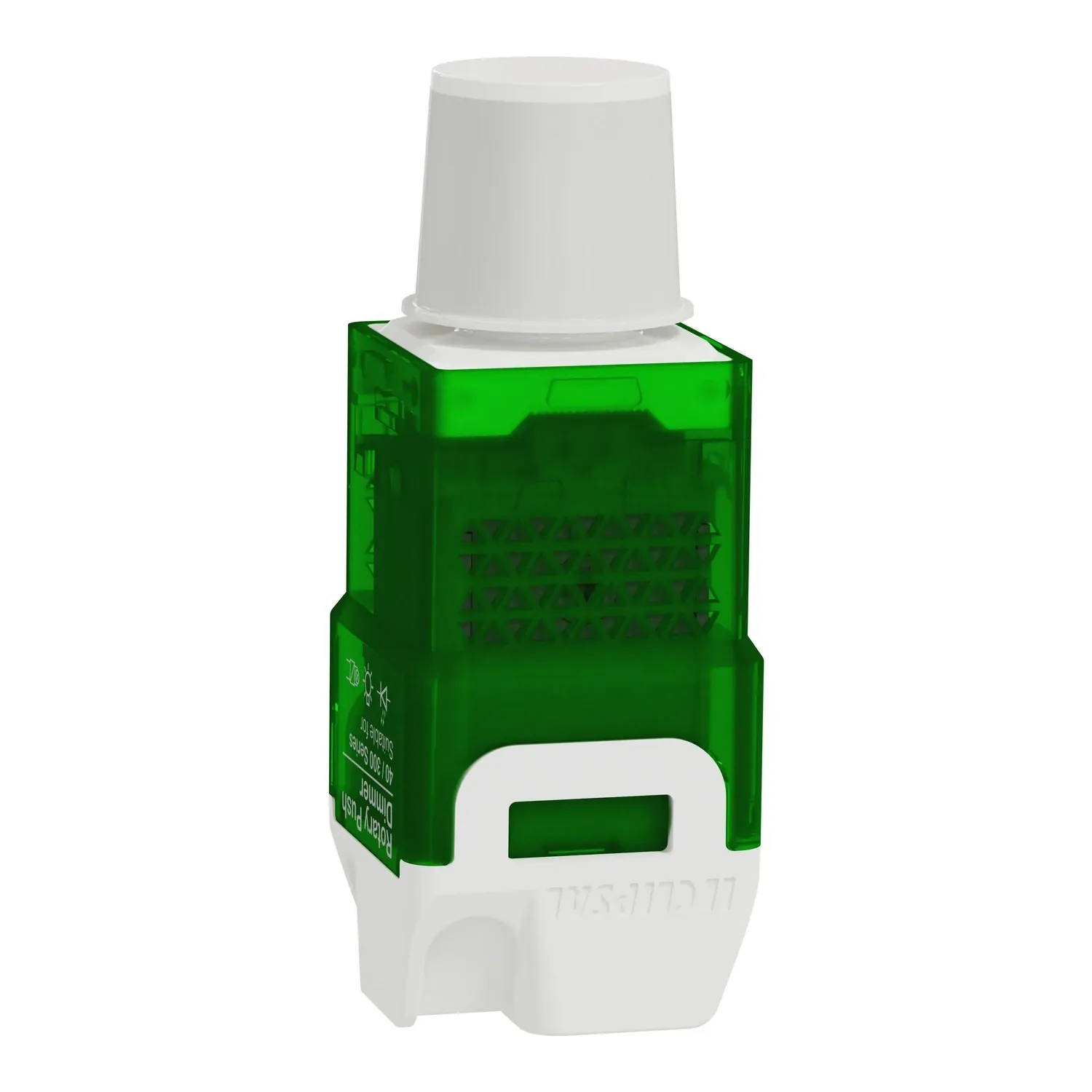

The Clipsal 40ERPBDM-VW is a 350 W rotary push dimmer mechanism for dimmable LED loads at 240 V. The 40ERPBDM-VW is a 40 series mech in Vivid White, supplied with flying leads and a clip-in fixing. The mechanism mounts flush behind a separate wall plate and is rated IP20 for indoor use.
Dimming an LED circuit comes down to matching the dimmer to the load it has to carry. The 40ERPBDM-VW handles 350 W of dimmable LED at 240 V, and 300 W on incandescent lamps or electronic transformers. LED-optimised trailing edge switching suits the drivers used in current LED fittings. Minimum and maximum brightness adjustment sets the dimming range at the mech during fit-off.
The 40ERPBDM-VW supports multiway dimming up to four-way, with published wiring for converting existing two-way and three-way switch runs. Dimmer-to-dimmer runs extend up to 50 metres, and each mech carries integral on and off switching. Clipsal backs the LED dimmer range with a seven-year warranty.
Features
- Rotary push control — rotate the knob to set the light level, press it to switch the circuit on or off.
- 350 W LED rating — the 40ERPBDM-VW carries up to 350 W of dimmable LED load at 240 V.
- 300 W incandescent rating — rated for up to 300 W of incandescent lamp load on the same mechanism.
- Electronic transformer loads — rated for up to 300 W where the lighting runs through electronic transformers.
- LED optimised trailing edge — trailing edge switching is matched to the drivers used in current LED lamps and fittings.
- Configurable mini kick start — the mini kick start on the 40ERPBDM-VW is configurable rather than a fixed factory value.
- 20-minute ramp — ramp up and ramp down run over 20 minutes.
- Blue and white LED indicator — the mechanism carries a blue and white LED indicator.
- Flying lead terminals — connections are made through flying leads rather than back-of-mech screw terminals.
- Mechanism only — the 40ERPBDM-VW is supplied as a mech with a clip-in fixing and takes a separate 40 series wall plate.
- IP20 indoor rating — rated IP20, so the mechanism suits dry indoor positions only, with no protection against water.
Where to use
- LED downlight circuits — the 40ERPBDM-VW suits living areas and hallways with dimmable LED downlights up to 350 W.
- Two-way and three-way retrofits — the published multiway wiring covers existing two-way and three-way switch runs converted to dimming.
- Bedrooms and media rooms — minimum brightness adjustment sets how low the lamps go on the 40ERPBDM-VW.
- Light commercial fit-outs — the Clipsal LED dimmer range covers residential and light commercial lighting such as offices and reception areas.
- Pendant and wall lights — incandescent pendants, wall lights and filament fittings dim on the 40ERPBDM-VW up to 300 W.
- Low voltage lighting — lighting run through electronic transformers dims up to 300 W on the same mechanism.
The 40ERPBDM-VW carries an IP20 rating, so it is not suitable for outdoor or damp locations. Loads above 350 W of dimmable LED, or above 300 W on incandescent lamps and electronic transformers, are outside the rating. The mechanism does not carry 0-10 V driver control, so lighting that dims on a 0-10 V or 1-10 V signal is outside its scope.
