Learn more by watching our Clipsal Iconic SD-3044VA-2DIM-2LT-TXT-VW | 4 Gang complete 2 x Dimmer 2 x SD Light Text Dolly video.

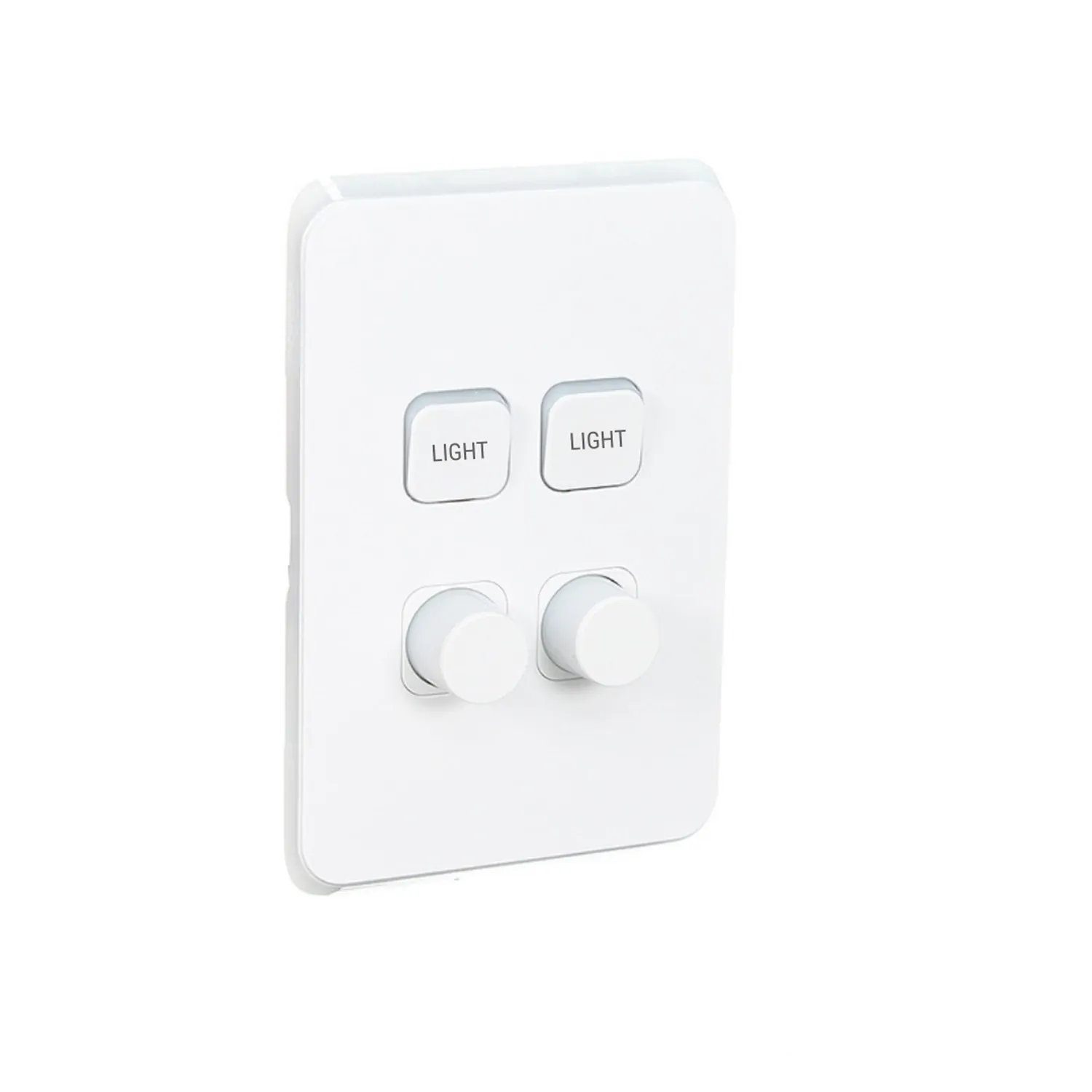

The Clipsal SD-3044VA-2DIM-2LT-TXT-VW is a four-gang Iconic wall plate with two rotary dimmers and two 10 A switches fitted. Sparky Direct assembles the SD-3044VA-2DIM-2LT-TXT-VW from a 3044C cover, a 3044G grid, two 40M mechanisms, two SD Light Text Dollies and two 40ERDM-VW dimmers. Each 40ERDM-VW dimmer handles dimmable LED loads to 350 W at 240 V. Each one draws up to 1.5 A.
A four-gang position that dims two circuits and switches two others carries four mechanisms in the one grid plate. The SD-3044VA-2DIM-2LT-TXT-VW is supplied with all four mechanisms already fitted to the 3044G grid plate. Each rotary dimmer is a clip-in 40 Series mechanism measuring 22.8 mm square and 55.4 mm deep. The two switched gangs sit behind engraved Light text rockers.
The SD-3044VA-2DIM-2LT-TXT-VW arrives made up and ready to fit off by a licensed electrician. The complete assembly covers the cover plate, grid plate, two switch mechanisms, two light text dollies and two rotary dimmers. Each dimmer carries a 350 W rating on dimmable LED at 240 V. The dimmer knobs and the cover plate are all finished in Vivid White.
The SD-3044VA-2DIM-2LT-TXT-VW carries an IP20 ingress rating and is not rated against water. Do not install it in outdoor or damp exposed locations, or anywhere subject to splash. The 40ERDM-VW dimmers are specified for light control only and are not rated for loads above 350 W each.
(SD-3044VA-2DIM-2LT-TXT-VW)
A four-gang Iconic wall plate that comes built up. Two gangs dim their lighting circuits with rotary dimmers, the other two switch their circuits on and off. It arrives assembled, ready for a licensed electrician to wire in and fit off.
Each one dims LED lighting up to 350 W on 240 V. The same 350 W limit covers incandescent lamps and lighting run through electronic transformers. Each draws up to 1.5 A, and the knob turns to set the brightness.
Six parts, supplied already put together: the cover plate, the grid plate, two 10 amp switch mechanisms, two SD Light Text Dollies and two 350 W rotary dimmer mechanisms.
No. Two gangs dim and two switch. The rotary gangs set brightness on their own circuits. The other two run 10 amp switch mechanisms behind light text dollies, and those just turn their circuits on and off.
The label on the rocker. This plate uses rockers engraved with the word Light. The other build carries a printed symbol instead. Everything else is the same: the same plate, the same mechanisms and the same 350 W dimmers.
No. Each dimmer gets its own 350 W, so the two circuits are rated separately. A run on one gang does not eat into what the other gang can carry.
A licensed electrician. Sparky Direct voids the warranty on anything not installed by one. The plate sits flush in the wall, and each dimmer wires in on flying leads at the back of the mechanism.
Anywhere wet or exposed. The dimmers are IP20, so they have no water protection at all. Keep the plate out of outdoor spots, damp areas and splash zones. It is made to control lights only.
The Clipsal by Schneider Electric SD-3044VA-2DIM-2LT-TXT-VW is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | SD-3044VA-2DIM-2LT-TXT-VW |
| Model # | SD-3044VA-2DIM-2LT-TXT-VW |
| Package Weight | 0.155kg |
| TYPE | VALUE |
|---|---|
| Type | Switches |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal Iconic |
| Colour | Vivid White |
| Rated Current (A) | 10 |
| Height (mm) | 120 |
| Width (mm) | 78 |
| Depth (mm) | 12 |
| Complete / Skin Only / Grid Plate Only | Complete |
| Number of Switches / Gangs | 4 |
