Clipsal by Schneider Electric | Pro Series 6 Gang Switch Cover Frame Skin Only | Black

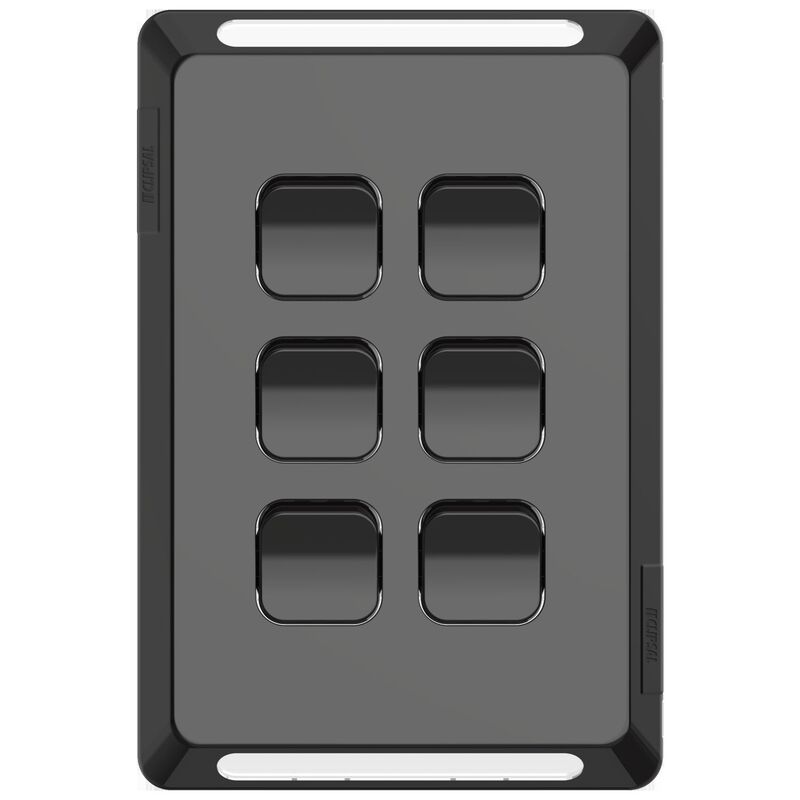

The Clipsal Pro Series P3046C-BK is a six gang switch cover frame in black, supplied as a skin only. The P3046C-BK clips on over six rockers and measures 116 mm high, 78 mm wide and 9 mm deep. It carries no mechanism and no grid plate.
In a commercial building the question at a switch bank is which rocker does what, and the answer usually ends up on a label that peels or a marker line that fades. The Pro Series skin carries an integrated circuit identification window, so the labelling sits behind the cover rather than stuck to the front of it. The window section is moulded polycarbonate, and the skin around it is ABS plastic.
The P3046C-BK is a clip-on skin, so the cover comes off and goes back on over the mechanism and grid plate behind it. It is a horizontal or vertical mount frame set out for six rockers at 116 mm by 78 mm. Depth over the wall face is 9 mm, and the frame weighs 0.018 kg on its own.
Features
- Skin only — the P3046C-BK is the cover frame alone, with no mechanism and no grid plate in the pack.
- Six rocker frame — the frame is set out for six switch rockers in one opening.
- Clip-on fixing — the fixing mode is clip-on, so the frame seats over the assembly behind it.
- Circuit identification window — the Pro Series skin carries an integrated window for permanent circuit identification.
- Polycarbonate window — the window section is moulded in polycarbonate.
- ABS skin — the skin itself is moulded in acrylonitrile butadiene styrene.
- Horizontal or vertical mount — the P3046C-BK is a horizontal or vertical mount cover frame.
- Rockers provided — rockers are listed as provided equipment with the P3046C-BK.
- Glossy surface finish — the surface finish on the black frame is glossy.
- 116 mm height — the frame stands 116 mm high.
- 78 mm width — the frame measures 78 mm across.
- 9 mm depth — the frame sits 9 mm deep.
- Black colour — the P3046C-BK is supplied in black.
- 18 gram net weight — the frame weighs 0.018 kg on its own.
Where to use
- Commercial switch banks — Pro Series is built for commercial buildings, where the P3046C-BK matches the rest of the range.
- Circuits needing identification — positions where each rocker has to be labelled and the labelling has to stay put.
- Six gang positions — wall positions already set out for six switch rockers.
- Horizontal or vertical openings — switch openings running either way, since the frame mounts in both directions.
- Marked or scuffed skins — positions where the cover needs changing at the face while the mechanism stays in place.
The P3046C-BK is a cover frame only and carries no mechanism or grid plate, so it will not work as a switch on its own. The frame is set out for six rockers, so it does not suit a position with a different gang count. Operation is specified between 0 and 45 degrees C at 10 to 95 per cent relative humidity, with storage from 0 to 60 degrees C.
