        Clipsal Schneider 5508D1D | C-Bus Dimmer 8 Channel With Power Supply
        $1,535.60 $1,396.00 ex. GST
        Video

        Learn more by watching our Clipsal Schneider 5508D1D | C-Bus Dimmer 8 Channel With Power Supply video.

        Description

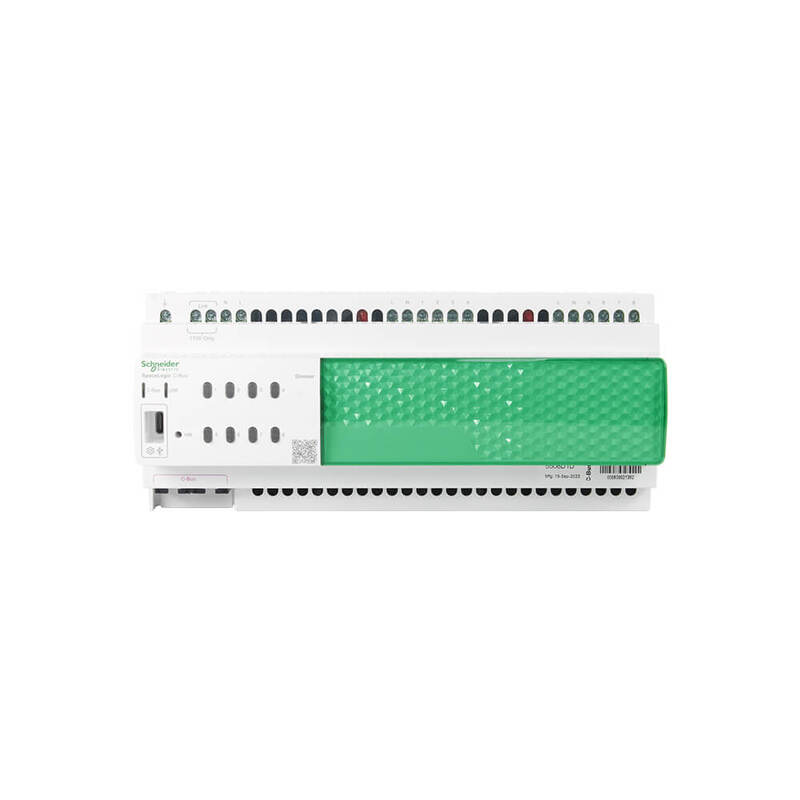

        Clipsal Schneider 5508D1D | C-Bus Dimmer 8 Channel With Power Supply

        Description:

        Elevate your lighting control with the Schneider Electric SpaceLogic C-Bus 5508D1D, an advanced 8-channel digital dimmer designed for sophisticated light management. Whether you're an electrician or a homeowner, this device provides unparalleled control over your lighting environment, accommodating dimmable LEDs and incandescent and halogen lamps.

        With its ability to switch between trailing and leading edge dimming modes per channel, it caters to various load types, ensuring optimal performance and compatibility. The dimmer includes a selectable C-Bus power supply, enhancing its integration capabilities.

        It's crafted from durable thermoplastic in a sleek white colour, fitting seamlessly into any decor. Commissionable through SpaceLogic C-Bus Commission software, it offers customized lamp profiles and dimming curves, along with advanced diagnostics and built-in protections for longevity.

        Features:

        • 8 Channel Control with 1A per channel for comprehensive lighting scenarios.
        • Adjustable Dimming Modes (trailing and leading edge) to match specific load requirements.
        • Selectable C-Bus Power Supply for streamlined installation and operation.
        • Compatible with Various Light Types including dimmable LEDs, incandescent, and halogen lamps.
        • Customizable Channel Profiles for tailored dimming curves and lamp behaviours.
        • Advanced Diagnostics and Protections ensure device longevity and reliability.
        • Thermoplastic construction in white adds a modern touch to any setting.
        • DIN Rail Mounted for easy integration into electrical panels.
        • 400mm CAT5E data cable included.

        FAQ:

        Q: What types of lamps can the 5508D1D dimmer control?
        A: It's compatible with dimmable LEDs, incandescent lamps, and halogen lamps (both with electronic and iron core transformers).

        Q: Can the dimming mode be adjusted for each channel?
        A: Yes, each channel's dimming mode (trailing or leading edge) can be adjusted to suit the connected load type.

        Q: Is the device easy to install and configure?
        A: The dimmer is DIN rail mountable for easy installation, and configuration is done via the SpaceLogic C-Bus Commission software, making it accessible for both professionals and tech-savvy homeowners.

        Q: What are the operating conditions for the 5508D1D dimmer?
        A: It operates within a temperature range of -5 °C to +55°C, with a relative humidity of 10% to 93% non-condensing.

        (5508D1D)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Range SpaceLogic C-Bus
        Product brand Schneider Electric
        Component type Dimmer
        Device application Light control
        Device presentation Complete device
        Provided equipment 1,400 mm patch cable
        Load type Dimmable LED, Halogen lamp, Halogen lamp with standard electronic transformer, Halogen lamp with standard ferromagnetic transformer, Incandescent lamps
        Load current 1A per channel
        Dimmer type Trailing edge, Leading edge
        Power supply output current 8 A
        Main colour tint White
        Rated operational voltage 230V AC +/- 10% at 50Hz,
        110V AC +/- 10% at 60Hz
        C-Bus Input Voltage 20-36V DC
        C-Bus Power Supply 200mA at 27-35V DC
        Network frequency 47-53 Hz,
        57-63 Hz
        Communication network type C-Bus
        Number of channels 8
        Mains terminals 2 x 1.5 mm²(16 AWG) or 1 x 2.5 mm²(13 AWG)
        Connector type 2 RJ45 connectors for C-Bus
        Device mounting DIN rail
        Mounting support DIN rail
        Width 216 mm
        Height 92 mm
        Depth 63 mm
        Net weight 0.844 kg
        Colour tint White
        Operation Ambient Temperature -5°C ~ 55°C
        Relative Humidity 10-93%
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 5508D1D
        Barcode # 3606486272527
        Shipping Weight 0.8750kg
        Shipping Width 0.100m
        Shipping Height 0.100m
        Shipping Length 0.230m
        Shipping Cubic 0.002300000m3
        TYPE VALUE
        Type Dimmer Control
        Brand Clipsal by Schneider Electric
        Power Supply Yes
        Din Rail Yes
