Clipsal | Iconic Rotary Push Dimmer Mechanism 350W 240V | Vivid White
The Clipsal 40ERDM-VW is a rotary push dimmer mechanism rated 220-240 V AC, with a maximum load of 350 W. The 40ERDM-VW is part of the Clipsal Iconic 40 series and is supplied as a mechanism with a Vivid White glossy knob. It uses trailing edge phase control and complies with AS/NZS 60669.2.1 and AS/NZS CISPR-15.
A dimmer must match the load and the fitting. The 40ERDM-VW runs trailing-edge phase control, which covers dimmable LED lamps, incandescent lamps, and electronic transformers. The load rating runs from 3 W to 350 W, and it drops as more dimmers share a plate. Dimming performance also varies with the type and brand of LED connected.

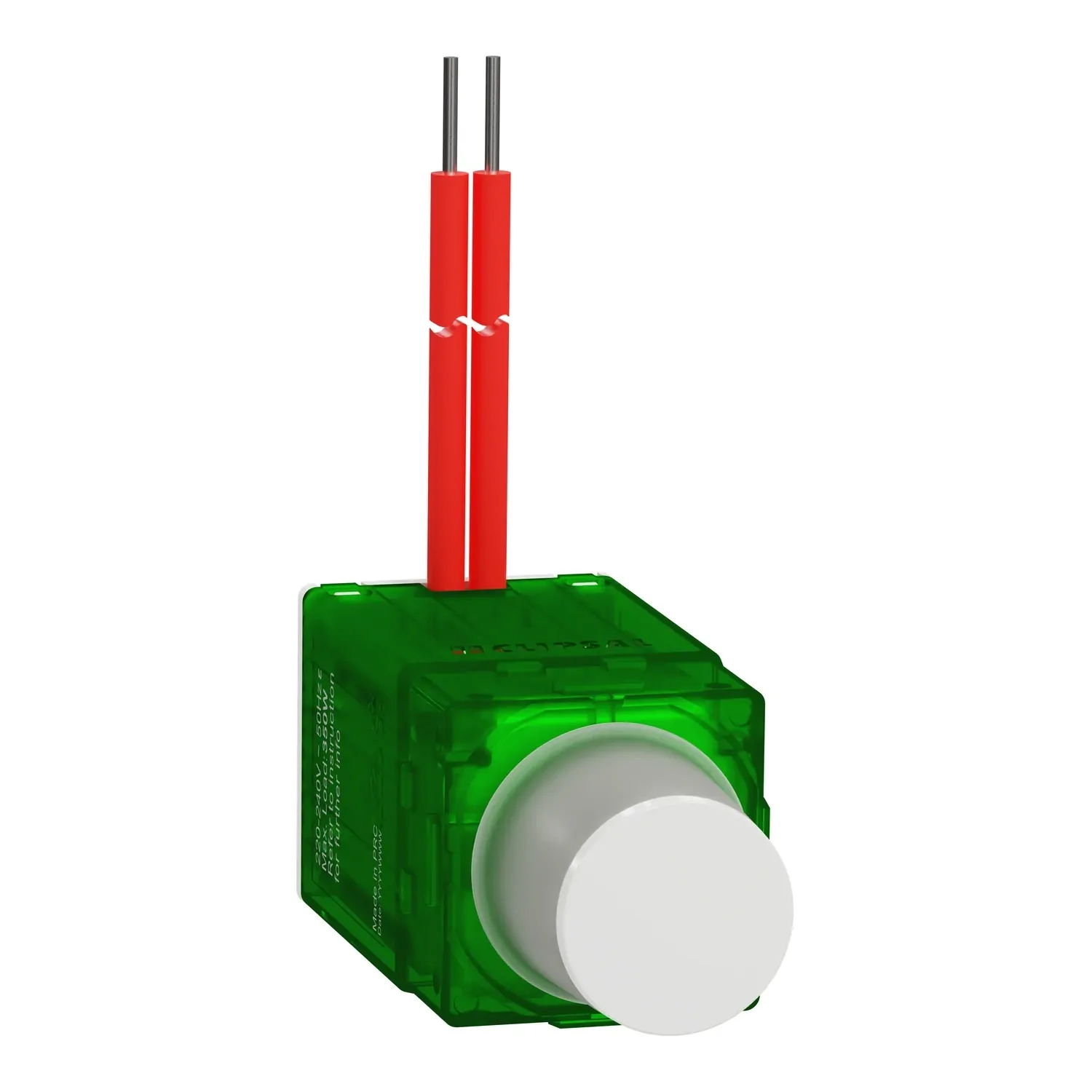

The 40ERDM-VW clips into a grid plate and connects through two flying leads. The knob and adapter pull off to set the minimum brightness at the shaft during commissioning. The body measures 22.8 by 22.8 by 55.4 mm and suits 40 series and 300 series plates.
Features
- Trailing edge phase control — the 40ERDM-VW dims by trailing edge phase control, a technique suited to electronic loads.
- 3 W to 350 W — the dimmer carries a minimum load of 3 W and a maximum load of 350 W.
- Three load types — rated for dimmable LED at 240 V, incandescent lamps and electronic transformers, each to 350 W.
- Multi-gang derating — maximum load falls as dimmers share a plate, from 300 W at two gang down to 90 W at six gang.
- One-way and two-way wiring — the 40ERDM-VW wires into either a one-way or a two-way dimming and switching arrangement, looping at the switch.
- Short circuit protection — short circuit protection is built into the dimmer.
- Thermal overload protection — built into the dimmer.
- Rotary push knob — turning the knob clockwise brightens the light and turning it counter-clockwise dims it.
- Adjustable minimum level — removing the skin, knob and adapter exposes a shaft that sets the lowest level the fitting runs at.
- Clip-in fixing — the mechanism seats into the grid plate using a clip-in fixing mode.
- AS/NZS 60669.2.1 compliance — built to AS/NZS 60669.2.1 for safety and AS/NZS CISPR-15 for electromagnetic compatibility.
- IP20 indoor rating — the 40ERDM-VW is rated IP20, which suits dry interior positions only.
Where to use
- Dimmable LED downlights — the 40ERDM-VW suits dimmable LED circuits, where trailing edge control is the matching dimming technique.
- Single-gang dimmer positions — a dimmer on its own plate runs the full 350 W with no derating applied.
- Two-way stair and hall control — the 40ERDM-VW supports two-way dimming and switching for lighting controlled from both ends.
- Incandescent and transformer loads — covers older incandescent fittings and low-voltage fittings running on electronic transformers.
- Iconic grid plate rows — the clip-in body drops into a grid plate alongside switches and other mechanisms on the same row.
- Flush wall positions — the 40ERDM-VW is a flush-mount mechanism, so it sits in the wall rather than on the surface.
- Commissioning low-end levels — for spaces needing a fixed minimum light level, set it at the shaft before handover.
The 40ERDM-VW is rated IP20 and is not suitable for damp or wet positions such as bathrooms, laundries and external walls. It does not dim lamps that are not themselves dimmable, and loads under 3 W sit below the minimum rating. Ambient temperature must stay between 0 and 40 degrees Celsius, with humidity from 5 to 95 per cent and non-condensing.
