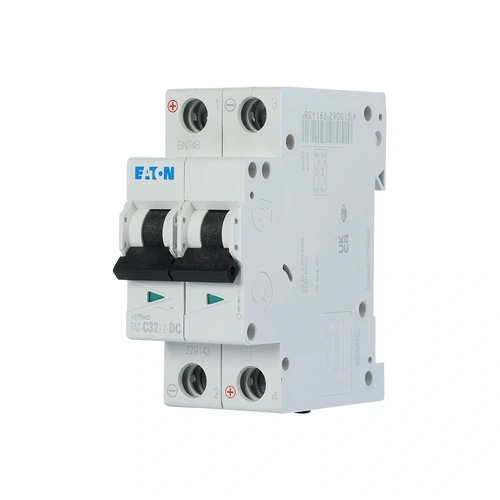

        Eaton FAZ-C32-2-DC | 32A DC Circuit Breaker 2 Pole 10kA

        The Eaton FAZ-C32-2-DC is a robust and versatile 32A DC miniature circuit breaker, specifically engineered to provide reliable protection in DC systems. Featuring a compact 2-pole design, it is rated for up to 250V DC per pole and offers a high breaking capacity of 10kA (IEC 60947-2), making it suitable for a wide range of applications. Its C-type tripping characteristic ensures compatibility with various load types, delivering operational flexibility and safety.

        With twin-purpose terminals that support conductor sizes from 1mm² to 25mm², installation is straightforward and secure. The FAZ-C32-2-DC is designed for durability, offering a lifespan of up to 10,000 electrical operations. Certified to IEC/EN 60947-2 standards, it ensures compliance with stringent safety and quality requirements.

        Eaton FAZ-C32-2-DC Features:

        • Breaking Capacity: 10kA (IEC 60947-2) for robust short-circuit protection.
        • Voltage Rating: Up to 250V DC per pole with a 440V maximum insulation voltage.
        • Current Rating: 32A with a C-type tripping characteristic for flexible load handling.
        • Protection Rating: IP20 for standard use; when fitted, it is IP40 for enhanced dust and contact protection.
        • Durability: Rated for up to 10,000 electrical operations, ensuring a long service life.
        • Versatile Terminals: Twin-purpose terminals accommodate conductor sizes from 1mm² to 25mm².
        • Compact Design: 70.5mm built-in depth and 36mm width for easy integration into modular setups.
        • Overvoltage Protection: Rated for 4kV impulse withstand voltage.
        • Environmental Resistance: Operates effectively in ambient temperatures from -25°C to +75°C.

        Eaton FAZ-C32-2-DC FAQ:

        Q: What is the rated operational voltage of the FAZ-C32-2-DC?
        A: It supports up to 250V DC per pole with a maximum insulation voltage of 440V.

        Q: Can it handle high short-circuit currents?
        A: Yes, it has a rated short-circuit breaking capacity of 10kA (IEC 60947-2).

        Q: Is it suitable for multiple conductor types?
        A: Yes, the twin-purpose terminals are compatible with solid-core and multi-wired conductors ranging from 1mm² to 25mm².

        Q: What is the durability rating of the circuit breaker?
        A: The FAZ-C32-2-DC is rated for up to 10,000 electrical operations.

        Q: Can it operate in extreme environmental conditions?
        A: Yes, it operates effectively in temperatures ranging from -25°C to +75°C.

        (FAZ-C32-2-DC)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Details
        Model FAZ-C32/2-DC
        Rated Current 32 A
        Voltage Type DC
        Rated Voltage 250 V DC (per pole)
        Breaking Capacity 10 kA (IEC/EN 60947-2)
        Number of Poles 2
        Release Characteristic C
        Dimensions (H x W x D) 75.5mm x 36mm x 80mm
        Mounting Method Top-hat rail (IEC/EN 60715)
        IP Rating IP20
        Compliance Standards IEC/EN 60947-2, EN45545-2, RoHS Conform
        Weight 0.237 kg

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Eaton
        SKU FAZ-C32-2-DC
        Barcode # 4015082791438
        Package Weight 0.251kg
        Package Width 0.075m
        Package Height 0.040m
        Package Length 0.090m
        TYPE VALUE
        Type Circuit Protection
        Brand Eaton
        Rated Current (A) 32
        Height (mm) 75.5
        Width (mm) 36
        Length (mm) 80
        Mounting Din Rail
        Voltage (V) 250 DC
        Number of Poles 2
        Breaking Capacity 10kA
        Curve C
