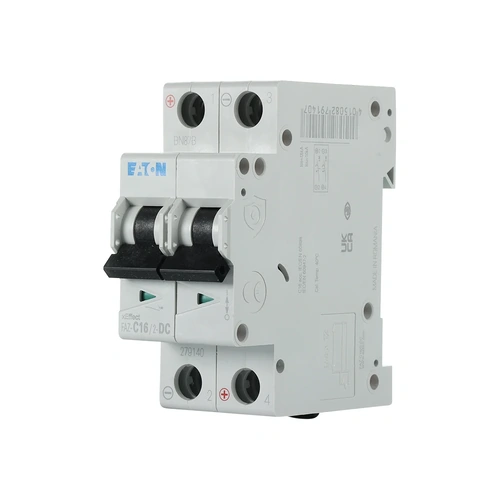

    Eaton FAZ-C16-2-DC | 16A DC Circuit Breaker 2 Pole 10kA

    The Eaton FAZ-C16-2-DC circuit breaker is a compact, efficient, and reliable solution for DC applications. Rated for up to 250V DC per pole, this two-pole miniature circuit breaker ensures robust performance with a short-circuit breaking capacity of 10kA. Its "C" tripping characteristic is ideal for applications with moderate inrush currents, offering flexibility across a range of scenarios.

    Engineered for durability, the FAZ-C16-2-DC supports up to 10,000 electrical operations and operates in temperatures from -25°C to 75°C. The breaker features twin-purpose terminals, accommodating conductors from 1mm² to 25mm², and is polarity-dependent to ensure correct orientation during installation. Compliant with IEC/EN 60947-2 standards, it provides reliable protection and safety for DC systems.

    Eaton FAZ-C16-2-DC Features:

    • Dual Poles: Two-pole configuration for comprehensive DC protection.
    • Voltage Rating: Operates at up to 250V DC per pole.
    • Rated Current: 16A, suitable for various DC applications.
    • High Durability: Supports up to 10,000 electrical operations for long-term use.
    • Tripping Characteristic: Type "C," suitable for loads with moderate inrush currents.
    • Compact Design: Measures 80mm in depth, 36mm in width, and 75.5mm in height.
    • User-Friendly Terminals: Twin-purpose terminals support conductor sizes from 1mm² to 25mm².
    • Impulse Withstand Voltage: Rated at 4kV for enhanced safety.
    • Environmental Tolerance: Operates efficiently in ambient temperatures from -25°C to 75°C.

    Eaton FAZ-C16-2-DC FAQ:

    Q: What is the rated voltage for this circuit breaker?
    A: The breaker is rated for up to 250V DC per pole.

    Q: Is this circuit breaker suitable for high short-circuit conditions?
    A: Yes, it has a rated short-circuit breaking capacity of 10kA, meeting IEC 60947-2 standards.

    Q: What type of tripping characteristic does this model have?
    A: It features a "C" tripping characteristic, ideal for applications with moderate inrush currents.

    Q: What conductor sizes are compatible with this breaker?
    A: The twin-purpose terminals accommodate conductor sizes ranging from 1mm² to 25mm².

    Q: How durable is this circuit breaker?
    A: It is rated for up to 10,000 electrical operations, ensuring long-lasting performance.

    (FAZ-C16-2-DC)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Model FAZ-C16/2-DC
    Rated Current 16 A
    Voltage Type DC
    Rated Voltage 250 V DC (per pole)
    Breaking Capacity 10 kA (IEC/EN 60947-2)
    Number of Poles 2
    Release Characteristic C
    Dimensions (H x W x D) 75.5mm x 36mm x 80mm
    Mounting Method Top-hat rail (IEC/EN 60715)
    IP Rating IP20
    Compliance Standards IEC/EN 60947-2, EN45545-2, RoHS Conform
    Weight 0.237 kg
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Eaton
    SKU FAZ-C16-2-DC
    Barcode # 4015082791407
    Package Weight 0.240kg
    Package Width 0.075m
    Package Height 0.040m
    Package Length 0.090m
    TYPE VALUE
    Type Circuit Protection
    Brand Eaton
    Rated Current (A) 16
    Height (mm) 75.5
    Width (mm) 36
    Length (mm) 80
    Mounting Din Rail
    Voltage (V) 250 DC
    Number of Poles 2
    Breaking Capacity 10kA
    Curve C
