Learn more by watching our Eaton FAZ-C25-2-DC | 25 amp DC Circuit breaker 2 pole 10kA video.

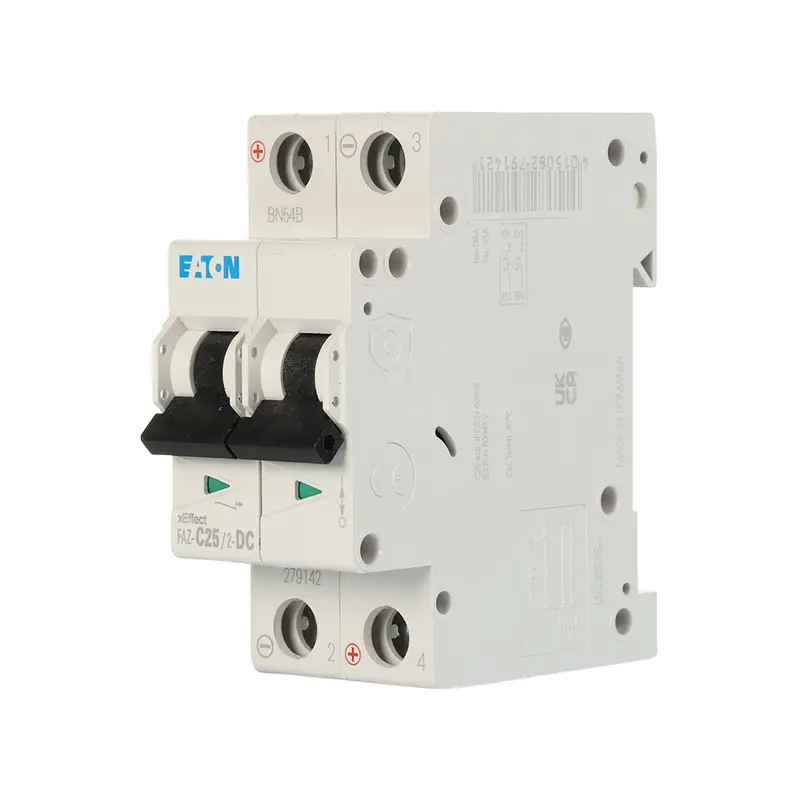

The Eaton FAZ-C25-2-DC is a 2-pole DC miniature circuit breaker (MCB) designed for effective protection in DC applications. Rated at 25A with a C curve tripping characteristic, it offers dependable protection from short circuits and overloads. It is rated for 250V DC per pole and has a high short-circuit breaking capacity of 10kA, compliant with IEC 60947-2 standards.
Its compact design ensures easy installation on a standard top-hat rail, making it suitable for a variety of industrial and commercial settings. Additionally, this MCB is RoHS compliant and meets stringent international safety standards, including EN 45545-2 and IEC/EN 60947-2, for safe and reliable performance.
Q: What is the rated current of this circuit breaker?
A: The Eaton FAZ-C25-2-DC is rated at 25A.
Q: What is the short-circuit-breaking capacity of this MCB?
A: The FAZ-C25-2-DC has a breaking capacity of 10kA, offering robust protection for industrial environments.
Q: Is this circuit breaker suitable for DC applications?
A: Yes, it is specifically designed for DC circuits, with a voltage rating of 250V DC per pole.
Q: What type of mounting does this circuit breaker use?
A: It uses standard top-hat rail mounting, compatible with IEC/EN 60715 standards.
(FAZ-C25-2-DC)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Part Number | FAZ-C25/2-DC |
Number of Poles | 2 |
Current Rating | 25 A |
Voltage Type | DC |
Voltage Rating (per pole) | 250 V DC |
Insulation Voltage | 440 V |
Impulse Withstand Voltage | 4 kV |
Short-circuit Breaking Capacity | 10 kA (IEC 60947-2) |
Release Characteristic | C |
Mounting Method | Top-hat rail (IEC/EN 60715) |
Degree of Protection | IP20 / IP40 (when fitted) |
Operating Temperature | -25°C to 75°C |
Dimensions (L x H x W) | 80 mm x 75.5 mm x 36 mm |
Weight | 0.231 kg |
Connectable Conductor | 1 mm² to 25 mm² (solid/multi-wired) |
Certifications | EN45545-2, IEC 61373, IEC/EN 60947-2 |
Application | Switchgear for DC applications |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Eaton |
SKU | FAZ-C25-2-DC |
Barcode # | 4015082791421 |
Package Weight | 0.250kg |
Package Width | 0.090m |
Package Height | 0.075m |
Package Length | 0.040m |
TYPE | VALUE |
---|---|
Type | Circuit Protection |
Brand | Eaton |
Rated Current (A) | 25 |
Mounting | Din Rail |
Voltage (V) | 250V DC per pole |
Number of Poles | 2 |
Breaking Capacity | 10kA |
Curve | C |
Dimensions (mm) | L80mm, H75.5mm, W36mm |
