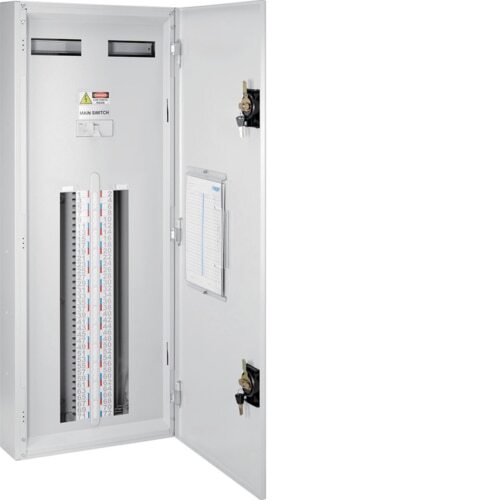

        Hager JVC7200S16TW | INVICTA 72P Chassis 160A TPN board

        Description:

        The Hager JVC7200S16TW Invicta 72P Chassis 160A TPN board is designed to meet the complex needs of both small to medium commercial installations and large residential projects. Crafted from 1.2mm tough powder-coated galvanised steel in a light grey finish (RAL9002), it offers unparalleled durability and a sleek, professional appearance. With a pre-fitted main isolator switch, it ensures safety and convenience right from the start.

        Features:

        • Extensive Module Capacity: Supports up to 72 poles, providing ample space for circuit breakers and RCBOs, ensuring a comprehensive electrical distribution solution.
        • Robust Construction: Made from galvanised steel with a tough powder-coated finish, it stands up to the rigors of any installation environment.
        • Secure Access: Equipped with a keylock door featuring two keylocks, it offers enhanced security and control over access to the electrical components.
        • Flexible Installation: Designed for surface mounting with the possibility of extension, it adapts easily to both new projects and upgrades.
        • Safety Compliance: Fully compliant with AS/NZS 61439.1 standards, including an IP30 protection index and IK05 mechanical impact protection, guaranteeing safety and reliability.

        FAQ:

        Q: Can the Hager Invicta 72P Chassis be used for outdoor projects?
        A: While designed primarily for indoor use with an IP30 rating, it ensures protection against solid objects but is not suitable for outdoor conditions without additional protection.

        Q: Is it possible to expand the board for future needs?
        A: Yes, its design allows for future extensions, making it a versatile choice for growing or evolving electrical distribution requirements.

        Q: How does the board ensure secure and controlled access?
        A: The inclusion of a keylock door with two keylocks provides secure access, limiting entry to authorized personnel only, enhancing the security of the electrical system.

        Q: What makes the Hager JVC7200S16TW stand out for commercial and large residential installations?
        A: Its combination of extensive pole capacity, robust construction, compliance with safety standards, and adaptability for extensions makes it ideal for a wide range of installation environments.

        (JVC7200S16TW)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Detail
        Fixing mode Surface-mounting
        Overvoltage protection No
        Number of modules 16
        Nominal voltage 400 V
        Rated current 160 A
        Insertion depth 117 mm
        Depth of installed product 135 mm
        Internal depth 115 mm
        Height of installed product 1235 mm
        Width of installed product 480 mm
        Thickness of sidewall material 1.2 mm
        Type of door closing With keylock
        Interlockable No
        Number of keylock of the door 2
        Cover type Closed(plain)
        Door leave Single
        Transparent cover or door No
        Colour Light grey
        RAL colour RAL 7035 - Light grey
        Material Steel
        Type of surface treatment Powder-coated
        Number of accessible phases 72
        Suitable for outdoor use No
        Quantity of rails 1
        Openings for flange plates 1
        Extension possible Yes
        IK protection code against mechanical impacts 05
        Protection index IP IP30
        Protection class isol.class I
        Glow wire test Yes according to AS/NZS 61439-1

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU JVC7200S16TW
        Model # JVC7200S16TW
        Barcode # 3250611101239
        Package Weight 31.380kg
        Package Width 0.530m
        Package Height 1.280m
        Package Length 0.185m
        TYPE VALUE
        Type Enclosure
        Brand Hager
        Colour Grey
        Height (mm) 1235
        Width (mm) 480
        Depth (mm) 135
        With Lock Yes
        Module Capacity 24
