Learn more by watching our Major Tech VBM810SMA | 8 Pole Surface Mount Distribution Board | Metal video.

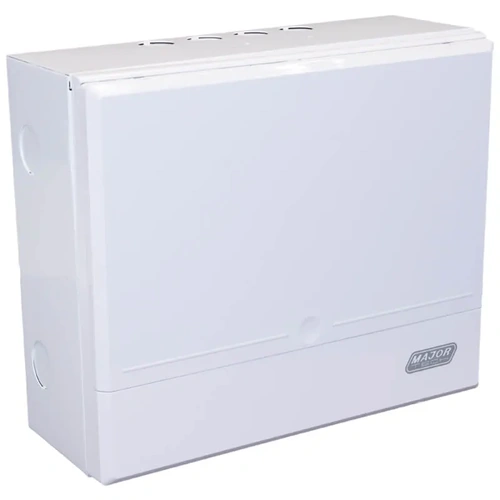

The Major Tech VBM810SMA is an 8-pole surface-mount distribution board with a single-row layout, holding up to 10 individual 18mm modules. Built for reliable indoor electrical distribution, it’s well-suited for residential and commercial installations requiring a durable metal enclosure.
Constructed from powder-coated iron, the board offers strength, corrosion resistance, and compliance without the need for additional protection plates. It features an adjustable DIN rail and cover for accurate, level installation, and a push-to-open mechanism that allows clean access with a flush finish. Included Earth & Neutral Bars and circuit labels help maintain neat and compliant wiring.
Rated IP20 and compliant with AS/NZS 61439 and AS/NZS 61000, the VBM810SMA is backed by a 5-year warranty, making it a practical choice for electricians and contractors needing a robust surface-mount board.
Major Tech VBM810SMA Features
Where to use this Major Tech VBM810SMA
(VBM810SMA)
It accommodates up to 10 individual 18mm modules in a single-row configuration, offering flexibility for compact switchboard layouts.
The VBM810SMA is rated IP20, offering protection against solid objects in indoor environments.
Yes, the board comes equipped with copper Earth and Neutral Bars for safe and compliant wiring.
It includes 4 x 20mm knockouts on both the top and bottom, plus 2 x 25mm knockouts on each side for convenient cable entry options.
The board measures 250mm (H) x 210mm (W) x 97mm (D).
It conforms to AS/NZS 61439 and AS/NZS 61000, meeting Australian safety and electrical performance requirements.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 5 Year
Commercial Use: 5 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | VBM810SMA |
| Model # | VBM810SMA |
| Barcode # | 6008229042775 |
| Package Weight | 1.270kg |
| Package Width | 0.215m |
| Package Height | 0.260m |
| Package Length | 0.105m |
| TYPE | VALUE |
|---|---|
| Type | Enclosures |
| Brand | Major Tech |
| Colour | White |
| Height (mm) | 210 |
| Width (mm) | 250 |
| Length (mm) | 97 |
| Mounting | Surface Mount |
| Material | ABS Plastic, Iron |
| IP Rating | IP20 |
| Number of Rows | 1 |
| Number of Modules | 10 |
