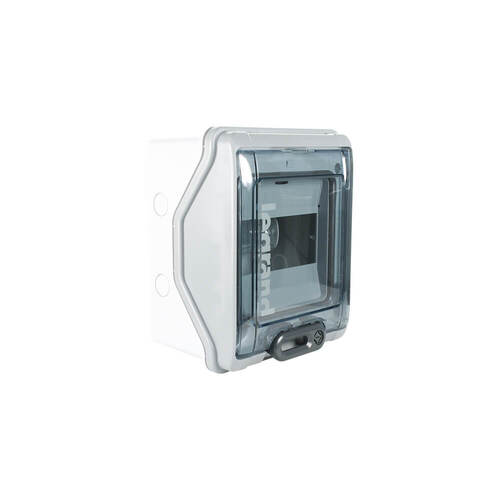

Legrand 601976 | 6 Module Surface Mount Weatherproof Switch Board IP65 IK09
Learn more by watching our Legrand 601976 | 6 Module Surface Mount Weatherproof Switch Board IP65 IK09 video.
Description:
Elevate your electrical control with Legrand 601976, a robust 6 Module Surface Mount Weatherproof Switch Board designed to bring unprecedented durability and adaptability to your home. Embrace innovation and ensure the longevity of your electrical components with this exceptional switchboard. Dive into the benefits and find answers to frequently asked questions below.
Benefits:
Weatherproof Durability: The Weatherproof PLEXO3 IP65 cabinets ensure the switchboard's resilience against challenging weather conditions, providing long-lasting reliability.
Impact-Resistant Construction: Crafted from impact-resistant reinforced polystyrene material, this switchboard stands strong against external forces with an IK09 rating, ensuring the safety and integrity of your electrical setup.
Modular Flexibility: The two-position rail allows seamless integration of modular products and moulded boxes, providing flexibility and adaptability to your specific requirements.
Efficient Cable Management: With a well-thought-out design, the switchboard features a 150mm spacing between rails, accommodating perforated plates and plain faceplates for mounting non-modular products.
Reversible Configuration: The door and cabinet are fully reversible, offering flexibility in installation and ensuring ease of access.
Tamper-Evident Security: The lockable door handle and tamper-evident cover and faceplate enhance security, protecting your electrical components from unauthorized access.
Direct Perforation Entry: Supplied with direct perforation entry glands, the switchboard simplifies the installation process, making it convenient.
FAQ:
Q: Can I install non-modular products on this switchboard?
A: Yes, the switchboard accommodates perforated plates and plain faceplates, allowing the mounting of non-modular products.
Q: Is the Legrand 601976 suitable for outdoor installations?
A: Absolutely; the Weatherproof PLEXO3 IP65 cabinets ensure durability and protection against challenging weather conditions, making it ideal for outdoor use.
Q: How secure is the switchboard?
A: The switchboard features a lockable door handle, tamper-evident cover, and faceplate, providing a secure environment for your electrical components.
Q: Can I reverse the door and cabinet configuration?
A: Yes, both the door and cabinet are fully reversible, offering flexibility in installation based on your preferences.
Bring unparalleled reliability and adaptability to your home with Legrand 601976. Invest in a weatherproof switchboard that not only protects but also enhances the performance of your electrical components. Embrace durability and security in one powerful solution.
(601976)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specifications | Details |
|---|---|
| Number of Rows | 1 |
| Number of Modules | 6 |
| Max. Permitted Current | 32A |
| Short Circuit Current | 10kA |
| Permissible Loads | 40N per Row |
| Rated Operating Voltage | 400V AC ~ 50/60Hz |
| Rated Insulation Voltage | 400V AC ~ 50/60Hz |
| Operating Temperature | -25°C to +40°C |
| Self Extinguishing | 650°C |
| Protection Rating | IP65/IK09 |
| Standards | IEC 60 439-3, IEC 60 695-2-11, IEC 62 262, IEC 62 208, RoHS, WEEE, REACH |
| Material | ABS |
| Material housing | Polycarbonate |
| Colour | Grey |
| Mounting method | Screw and snap-on mounting |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Legrand |
| SKU | 601976 |
| Barcode # | 3245066019765 |
| Shipping Weight | 0.6300kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.120m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.004080000m3 |
| TYPE | VALUE |
|---|---|
| Type | Switchboard |
| Brand | Legrand |
| Colour | Grey |
