Learn more by watching our Major Tech MTCK-5 | MT500 Tester + MT720 Meter video.
Additional related video.
Additional related video.

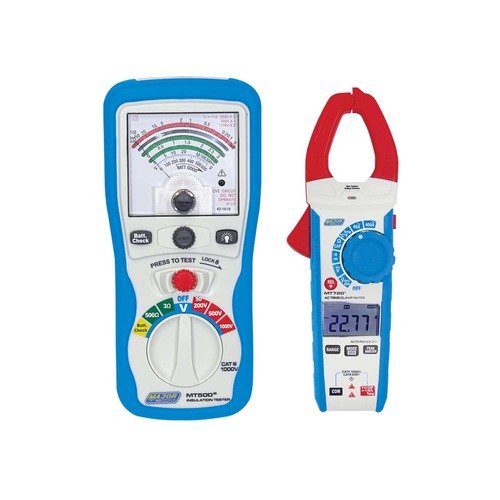

Major Tech MT500 | 1000V Analogue Insulation Tester
Download the Datasheet
Description:
The MT500 is a rugged, compact and easy-to-use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight, which is ideal when working in a dimly lit environment.
Features:
Major Tech MT720 | 400A AC True RMS Clamp Meter
Download the Datasheet
Description:
The MT720 is a CAT III 600V, 4000 count True RMS 400A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high-frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Features:
(MTCK-5)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
AC voltage | 0 – 600V | 20V | ± (5.0%) |
Resistance | 3Ω – 500Ω | 0.05Ω | ± (3.0%) |
Insulation resistance 250V | 250V | 0 – 100MΩ | ± (5.0%) |
Insulation resistance 500V | 500V | 0 – 200MΩ | ± (5.0%) |
Insulation resistance 1000V | 1000V | 0 – 400MΩ | ± (5.0%) |
Short circuit current | 1.3mA | ||
Current measurement Range | 200mA | ||
Overrange indication | Yes | ||
AC Bandwidth | 40Hz – 400Hz | ||
Digital Display | Analogue Display | ||
Continuity | Yes | ||
Auto discharge | Yes | ||
Input impedance | >1.2MΩ VAC | ||
Data Hold | Yes | ||
Back Light | Yes | ||
Enclosure | Double moulded | ||
Low battery indication | Yes | ||
Power source | 6 x R6 | ||
Weight | 700g | ||
Dimensions | 200 x 92 x 50mm | ||
Safety Specs | IEC61010-1 CatIV 600V |
Function | Range | Resolution | Accuracy |
AC Current | 40.00A – 400.0A | 10mA | ±(2.5% + 8 Digits) |
DC Voltage | 4.000V – 1000V | 1mV | ±(1.0% + 3 Digits) |
AC Voltage | 4.000V – 1000V | 1mV | ±(1.2% + 5 Digits) |
Resistance | 400.0Ω – 40.00MΩ | 0.1Ω | ±(1.5% + 2 Digits) |
Frequency | 10Hz – 100kHz | 1HZ | ±(1.0% + 5 Digits) |
Capacitance | 99.99nF – 99.99mF | 0.01nF | ±(3.0% + 5 Digits) |
Temperature | -20 to 1000°C | 0.1°C | ±(3.0°C + 3 Digits) |
Duty Cycle | 20.0% to 80.0% | 0,001 | ±(1.2% + 10 Digits) |
True RMS Measurements | ACV, ACA | ||
AC Bandwidth | 2KHz | ||
Digital Display | 4000 | ||
Non-Contact Voltage (NCV) | Yes | ||
Overrange Indication | Yes | ||
Continuity | Yes | ||
Diode Test | Yes | ||
Jaw Size | 30mm | ||
Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
Min Max | Yes | ||
Peak Hold | Yes | ||
Data Hold | Yes | ||
Back Light | Yes | ||
Enclosure | Double injection moulding | ||
Low Battery Indication | Yes | ||
Batteries | 3 x AAA | ||
Weight | 305g | ||
Dimensions | 220 x 80 x 39mm | ||
Safety Specs | IEC61010-1 CAT III 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MTCK-5 |
TYPE | VALUE |
---|---|
Brand | Major Tech |
Combo | MT500 + MT720 |
