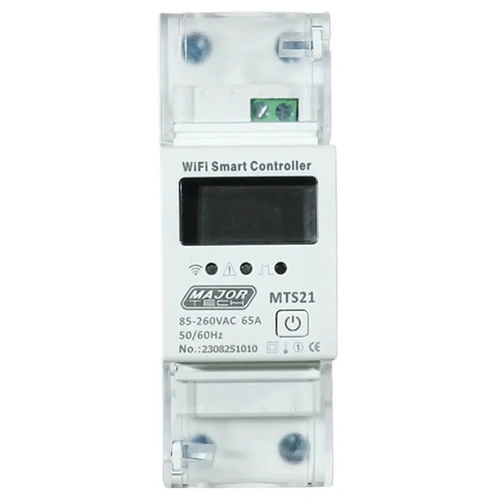

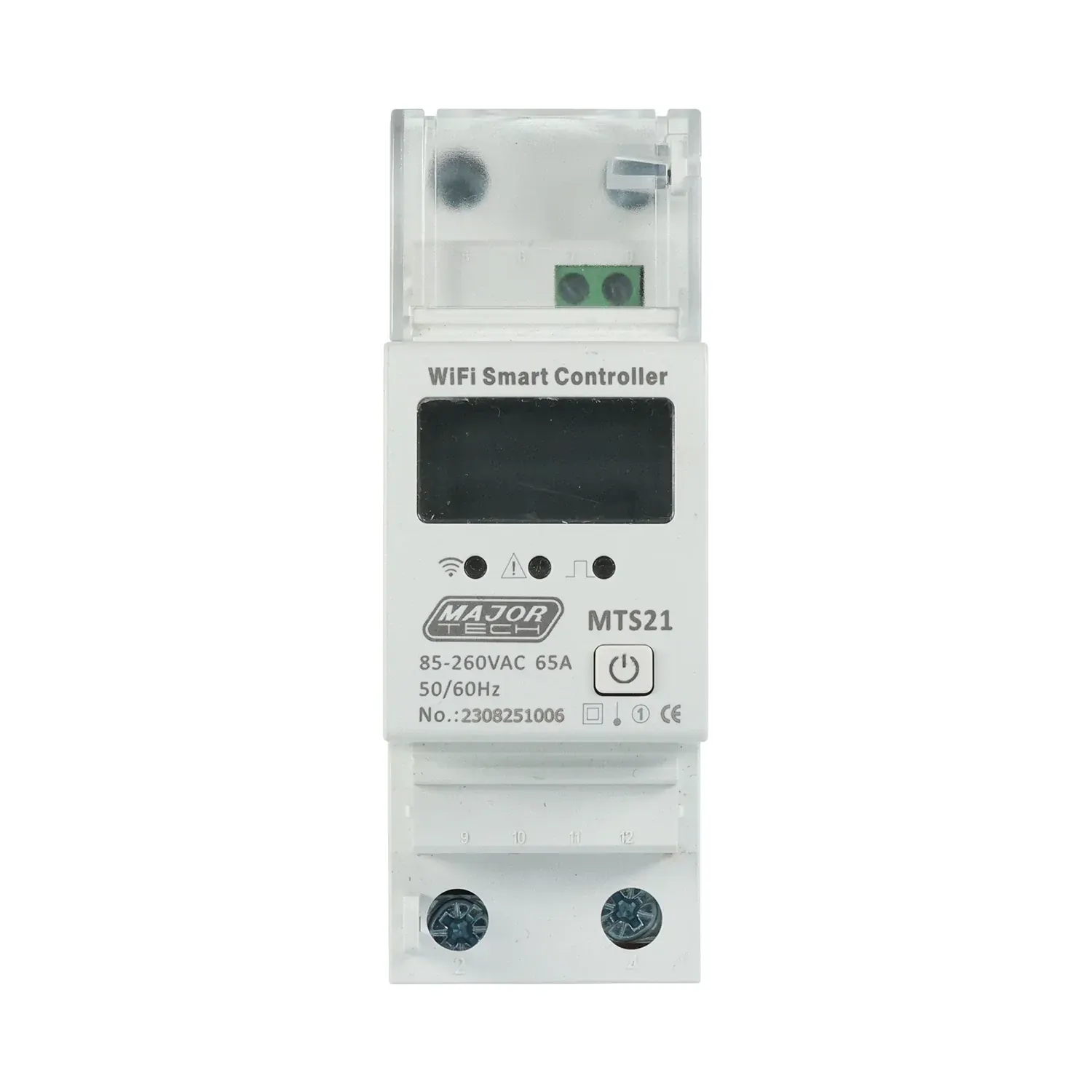

        Major Tech MTS21 | 65A Smart Energy Meter & Timer | WiFi & Bluetooth

        The Major Tech MTS21 is a high-precision smart energy meter for single-phase 2-wire systems, built for real-time tracking and smart control of electrical loads. It displays Voltage, Current, Active Power, Frequency, and Power Factor locally on its LCD, and remotely via the Major Tech Hub app.

        With a 65A / 9600W rating, it’s ideal for residential, commercial, or light industrial use. It also features automated load protection, instantly shutting off power during overcurrent or over/under voltage events (up to 450V spikes). The dual connectivity - Wi-Fi and Bluetooth - ensures continuous operation and control even during network dropouts.

        The built-in logger stores up to 2 months of energy data, exportable in Excel format for reporting. Designed for fast install with 35mm DIN rail compatibility, the MTS21 helps optimise energy use and safeguard connected loads.

        MTS21 Features

        • Smart Monitoring: Tracks Voltage, Current, Power, Power Factor, and Frequency in real-time
        • Load Protection: Auto cut-off during overcurrent and voltage fluctuations
        • App Connectivity: View and manage usage from the Major Tech Hub app
        • Dual Wireless: Wi-Fi + Bluetooth 5.2 for failover control
        • Data Logging: Export up to 2 months of usage in Excel format
        • LCD Display: Clear 99999.9kWh counter with Class 1 energy accuracy
        • DIN Rail Mounting: Quick to install on standard 35mm rail
        • High Capacity: 65A max load, up to 9600W @ 110–220V AC

        MTS21 FAQ

        Q: Will it keep working during Wi-Fi outages?
        A: Yes, it uses Bluetooth as a backup for basic operation and monitoring.

        Q: Can it measure real-time energy values?
        A: Yes, it displays live Voltage, Current, Power Factor, and Frequency.

        Q: Is it DIN rail compatible?
        A: Yes, it mounts directly onto a 35mm DIN rail for easy installation.

        (MTS21)

        Warranty

        Warranty starts from Invoice Date

        2 Years Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Rated Frequency 50/60 Hz
        Rated Current 65A
        Power 9600W (Resistive Load)
        Rated Voltage 110V / 220V
        Voltage Range 90 – 260V
        Approvals IEC / SANS / ICASA / LOA
        kWh Accuracy Class 1
        R.M.S Accuracy Class 0.5
        Current Circuit <1.5VA
        Voltage Circuit <2W / 8VA
        Starting Current 0.004Ib (20mA)
        LCD Display 99999.9 kWh
        Wi-Fi 802.11 B/G/N, 2.4GHz only
        Bluetooth Version 5.2
        Operating Temperature -25°C to +55°C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTS21
        Model # MTS21
        Package Weight 0.034kg
        Package Width 0.027m
        Package Height 0.065m
        Package Length 0.045m
        TYPE VALUE
        Type Smart Automation
        Brand Major Tech
        Rated Current (A) 65A
        Power 9600W (Resistive Load)
