Rinnai | TX Series Inverter Split System Air Conditioner 8.0kW | R32 Reverse Cycle

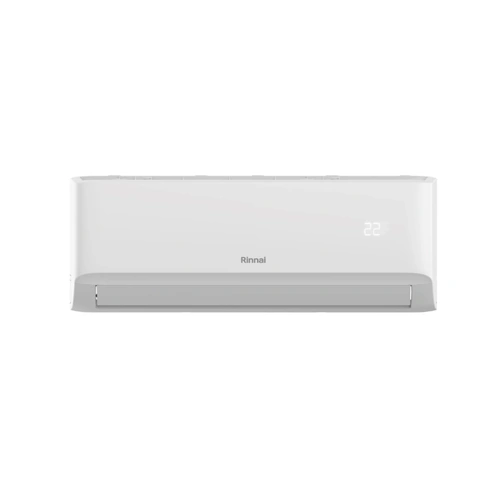

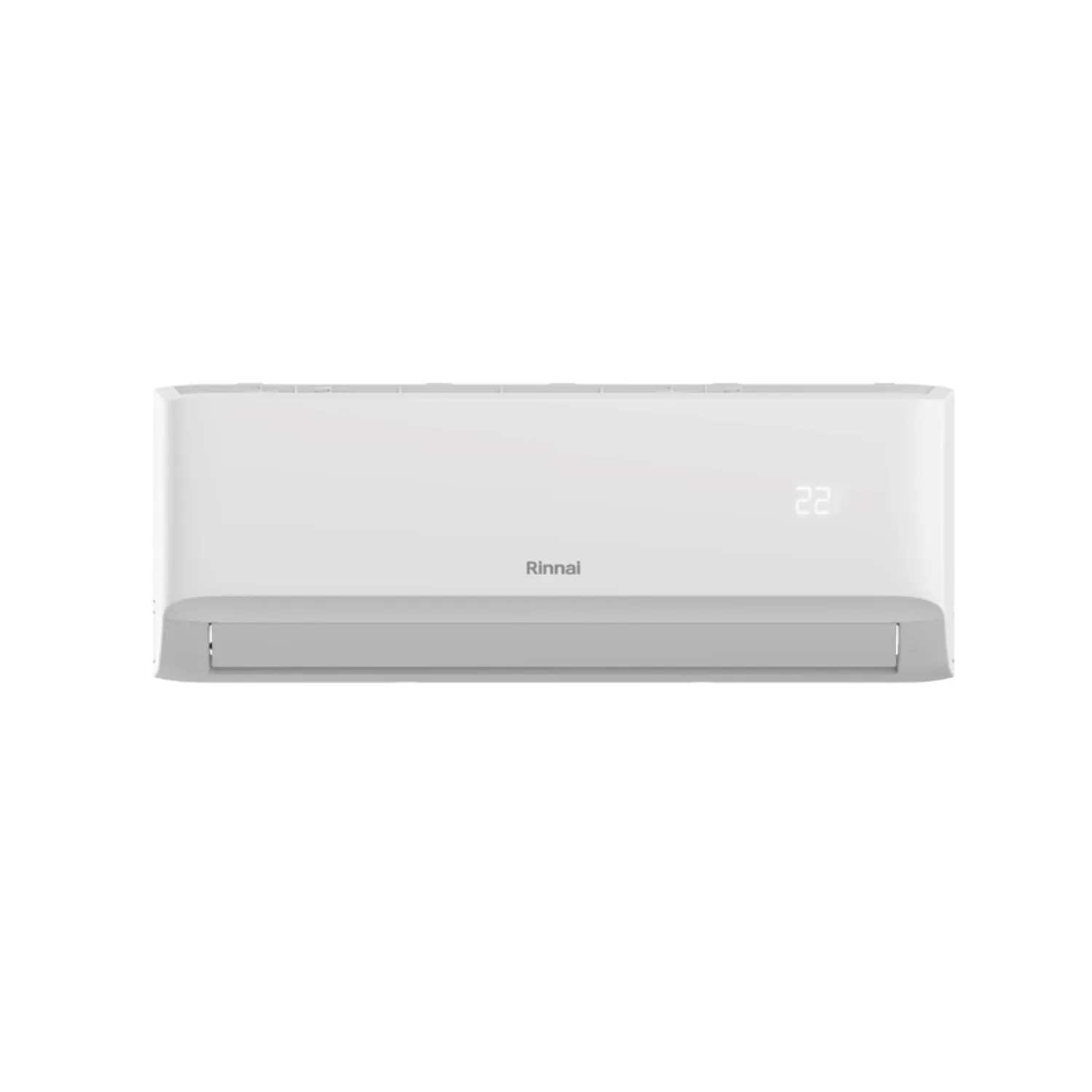

The Rinnai HSNRTX80 is a reverse cycle inverter split system air conditioner rated at 7.6 kW cooling and 8.2 kW heating. It pairs the HINRTX80 indoor head, finished in matte white, with the HONRTX80 outdoor unit. The HSNRTX80 runs on R32 refrigerant with built-in Wi-Fi and voice control. Capacities are tested to AS/NZS 3823.2 with a 5 metre interconnecting pipe run.
The HSNRTX80 is rated for 36 to 53 square metres under a 2.6 metre insulated ceiling. Inverter control modulates cooling output between 3.03 and 8.23 kW, holding temperature rather than cycling between full output and off. Dehumidifying removes up to 3.4 litres per hour of moisture. Indoor sound pressure runs from 52.0 dB(A) on turbo down to 21.0 dB(A) on minimum fan.
The HSNRTX80 is pre-charged for 15 metres of pipe, with a maximum total run of 50 metres and 25 metres vertical separation. Pair coil is 1/4 inch and 5/8 inch (6.35 mm and 15.90 mm liquid and gas). Beyond 15 metres, add 12 grams of refrigerant per metre. Maximum input is 4050 W at 17.5 A, on a single-phase 220 to 240 V supply with a 25 A recommended circuit breaker.
Carton sizes and weights
- Indoor unit — 415 x 1155 x 318 mm boxed, 17.1 kg gross and 13.2 kg bare.
- Outdoor unit — 750 x 1030 x 438 mm boxed, 47.2 kg gross and 43.8 kg bare.
The longest carton is 1155 mm, and the two boxes together weigh 64.3 kg. Check that the vehicle or trailer takes both cartons before collecting. The outdoor unit must stay upright in transit and cannot be laid on its side.
Features
- 7.6kW rated cooling — the HSNRTX80 carries a rated cooling capacity of 7.6 kW at standard test conditions.
- 8.2kW rated heating — reverse cycle heating is rated at 8.2 kW, giving the unit more output in heating than in cooling.
- R32 refrigerant — the system runs on R32, which has a lower global warming potential than traditional refrigerants and uses a smaller charge volume.
- GoldGuard coil coating — the condenser coil carries a nanotechnology coating that raises resistance to oxidation and corrosion compared with a standard condenser coil.
- HEPA and Cold Catalyst filters — combined filtration reduces up to 99 percent of bacteria and dust particles, tested by Intertek as an independent third-party laboratory.
- Built-in Wi-Fi — the HSNRTX80 connects to the NetHome Plus app for on/off, temperature and fan speed control from a mobile device.
- Voice control — settings can be managed through compatible Google Assistant and Amazon Alexa devices.
- Self-cleaning cycle — a manually activated cycle runs the indoor unit to 56 degrees C for sterilisation.
- 3.5-star cooling rating — the unit rates 3.5 stars for cooling across all three zoned energy rating bands, hot, average and cold.
- Demand control — a Demand Response Enabling Device is fitted to cut consumption at peak load times, subject to energy provider availability.
- 7-year warranty — Rinnai covers the HSNRTX80 for 7 years and services it through the 1stCare national network.
- Indoor operating limits — cooling is rated for indoor temperatures of 16 to 32 degrees C, and heating for 0 to 30 degrees C.
Where to use
- Open-plan living and dining — the HSNRTX80 is rated for the 36 to 53 square metre band that a combined living, dining and kitchen zone typically falls into.
- Coastal and salt-exposed sites — the GoldGuard condenser coating raises corrosion resistance where the outdoor unit sits in salt-laden air.
- Holiday homes and managed rentals — the HSNRTX80 connects to the NetHome Plus app, so the system can be switched on before arrival without anyone on site.
- Rural and semi-rural living areas — the HEPA and Cold Catalyst filtration suits locations carrying higher airborne dust loads.
- Retrofits and unit blocks — the HSNRTX80 runs up to 50 metres of interconnecting pipe, covering positions where the outdoor unit sits well away from the room it serves.
The HSNRTX80 is not rated below -15 degrees C outdoor ambient, and heating is rated to a 24 degrees C outdoor ceiling. At 36 to 53 square metres it sits outside capacity for a single bedroom or a whole-house load. Installation must be carried out by a licensed installer.
