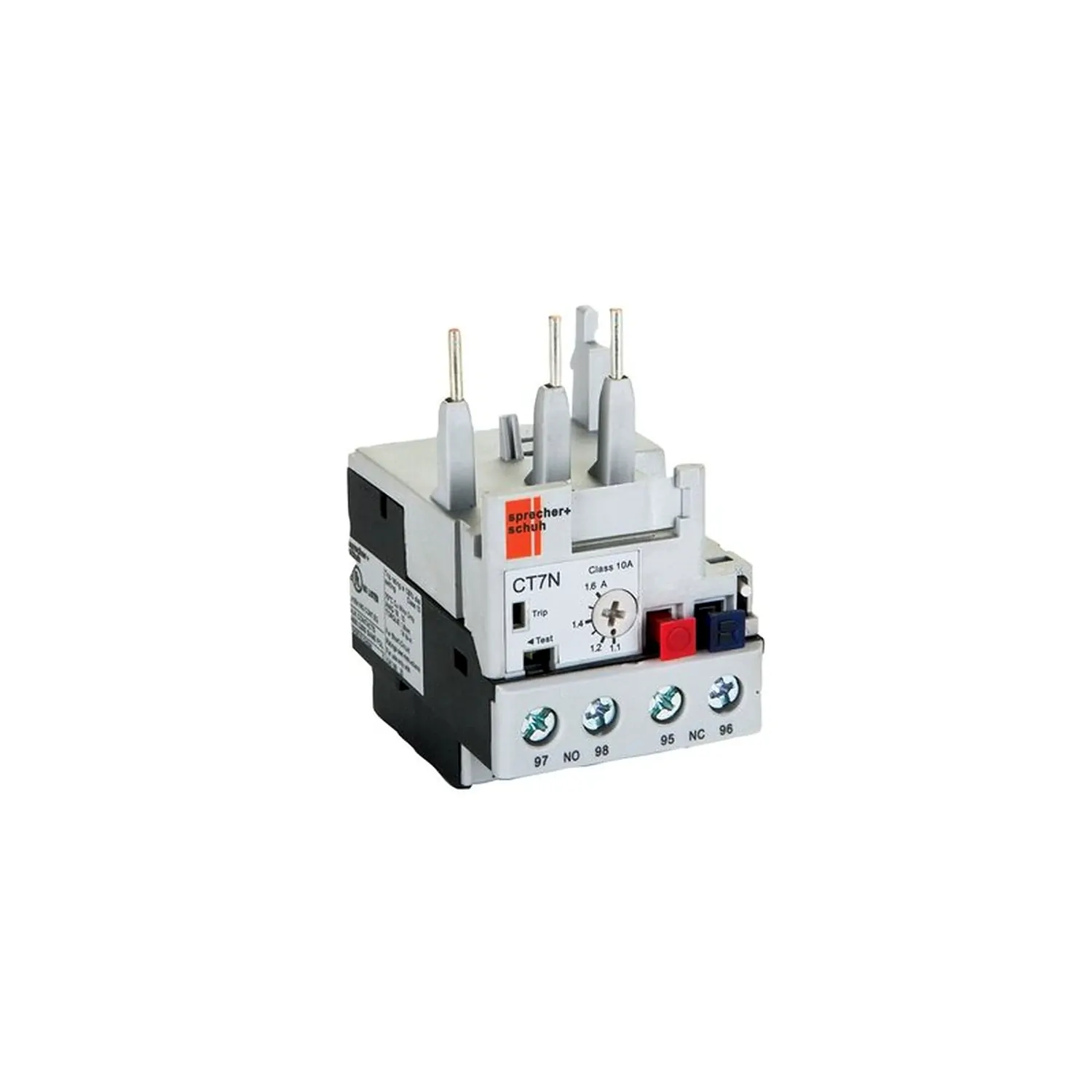

The Sprecher+Schuh CT7N-23-B10 is a bimetallic thermal overload relay with an adjustable setting range of 0.75 to 1.0 amps, rated 690V AC. The CT7N-23-B10 mounts directly to CA7-9 through CA7-23 contactors and carries a Class 10A trip characteristic to IEC/EN 60947-4-1. It supplies one normally open signal contact and one normally closed trip contact, with a selectable manual or automatic reset.
Small conveyor, pump and ventilation motors draw well under two amps, which a coarse overload block cannot discriminate accurately. The CT7N-23-B10 covers a 0.75 to 1.0 amp adjustment range, calibrated at both ends of that band. A differential tripping mechanism registers phase loss and trips in about 45 seconds, intercepting the fault that destroys single-phasing motors. Ambient compensation stabilises the trip point between minus 20 and plus 60 degrees Celsius, preventing nuisance trips from panel heat.
Panel builders get a relay that close-couples onto a CA7 contactor, so the starter stays compact with no separate mounting plate to drill. The selectable reset switch lets one part number cover manual reset on attended installations and automatic reset on remote sites. Control wiring benefits from the isolated NO signal contact, so a trip lamp or PLC input can operate at its own voltage. M4 terminations take two conductors up to 6mm2, accommodating panels wired in either 1.5 or 2.5.
The CT7N-23-B10 is not rated above 1.0 amp, so motors drawing more than that need a wider setting range. The relay is IP00 and not weatherproof, and must be installed inside an enclosure or switchboard by a licensed electrician. It cannot be used with True DC contactors, and the operating range is limited to altitudes up to 2000 metres and ambient temperatures of minus 20 to plus 60 degrees Celsius.
Verified Sparky Direct customer reviews: Sprecher+Schuh CT7N-23-B10 Thermal Overload Relay 0.75-1 Amps 690V (CT7N-23-B10)
"I have been using Sprecher & Schuh control contactors, overload relays and control relays" — Kevin
(CT7N-23-B10)
The CT7N series is built to IEC/EN 60947-1, 60947-4-1 and 60947-5-1, and carries cULus listing under file E33916 plus CSA C22.2 No. 14. Materials are RoHS compliant and the outer housing meets UL94 V0 for flame resistance.
The relay close-couples directly to a CA7-9 through CA7-23 contactor, forming a compact starter without a separate bracket. Main terminals use M4 screws torqued to 1.5 to 2.2 Nm. A DIN-rail or panel mount adapter is available if the relay needs to sit separately from the contactor.
Direct mounting suits CA7-9 through CA7-23 contactors. The CT7N range also works with electronic DC contactors and two-winding DC contactors from the same manufacturer. True DC contactors are not compatible with CT7N bimetallic overload relays.
Class 10A defines how quickly the relay trips at a given overload multiple, with tripping at 120 percent of full load current. Faster Class 10 relays suit modern T-frame motors, which hold less copper and iron than older U-frame designs and tolerate less overload time.
A differential tripping mechanism senses phase loss and accelerates the trip, operating at 115 percent of full load current and clearing in approximately 45 seconds. This feature is not found on traditional eutectic overload blocks, which can allow a single-phasing motor to burn out.
A selectable switch on the relay body sets manual or automatic reset. For enclosed installations, a field-installable external reset button or a remote reset solenoid can be fitted so the trip is cleared from outside the panel door.
Motors drawing more than 1.0 amp full load current fall outside the adjustment range and need a wider-range relay. The body is IP00, so it must be installed inside an enclosure. Operating limits are minus 20 to plus 60 degrees Celsius and a maximum altitude of 2000 metres.
The Sprecher+Schuh CT7N-23-B10 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
