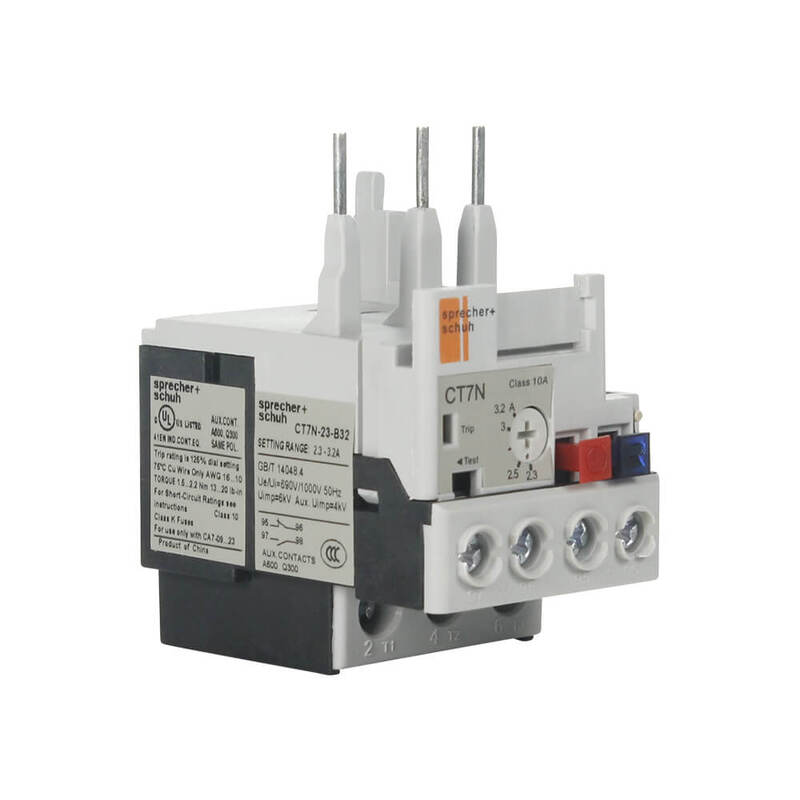

        Sprecher + Schuh CT7N-23-B32 | Thermal Overload Relay 2.3-3.2 Amps 690V

        Description:

        Discover the unbeatable protection and advanced features of the Sprecher + Schuh CT7N-23-B32 Thermal Overload Relay. Sprecher + Schuh is renowned for its commitment to motor protection, and the CT7N line of thermal overload relays showcases a range of standard features not found in traditional overload blocks and heater elements of the past. Whether you need consistent and reliable protection, superior Class 10 characteristics, safeguarding from single-phase conditions, or ambient temperature compensation, the CT7N-23-B32 is a cutting-edge solution. Here's why you should choose it:

        Benefits:

        • Dependable Motor Protection: Sprecher + Schuh's CT7N-23-B32 provides unparalleled motor protection with consistent quality, thanks to its factory current calibration procedure performed at full operating temperature.

        • Class 10 Excellence: Modern "T-Frame" motors require faster Class 10 overloads, making the CT7N Series the ideal choice to ensure optimal protection in applications with normal start-up conditions.

        • Single-Phase Safety: Unlike traditional thermal overload relays, the CT7N offers accelerated tripping under single-phase conditions, enhancing motor safety.

        • Temperature Compensation: All Sprecher + Schuh thermal overload relays feature temperature compensation, guaranteeing constant tripping characteristics over a wide ambient temperature range.

        • Versatile Application: The CT7N Series can be applied to protect single-phase AC motors, maintaining the same exceptional characteristics as in three-phase operation.

        • Additional Features: The CT7N overload relays come with various standard features, including selectable reset modes, a separate NO signal contact, and the ability to connect directly to CA7 contactors for a compact package.

        FAQ:

        Q: What are the voltage and current ratings for this thermal overload relay?
        A: This relay has a voltage rating of 690 Volt AC and a current range of 2.3-3.2 Amps.

        Q: Is it suitable for single-phase applications?
        A: Yes, the CT7N Series thermal overload relays are designed for single-phase protection.

        Q: Does it require complex installation and setup?
        A: No, the CT7N-23-B32 is designed for easy installation and offers a range of standard features to simplify its use.

        Q: Is the relay suitable for monitoring motors with normal start-up conditions?
        A: Yes, the CT7N Series is ideal for applications involving normal start-up conditions, making it an excellent choice for modern motors.

        Experience superior motor protection with the CT7N-23-B32 Thermal Overload Relay, backed by Sprecher + Schuh's commitment to innovation and quality. Safeguard your motors, enjoy advanced features, and rest assured that your electrical systems are in capable hands. Elevate your home's safety with the CT7N-23-B32.

        (CT7N-23-B32)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        The warranty starts from the Invoice Date.

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Details
        UNSPSC CLASS 39122300
        UOM EA
        CONTACT CONFIGURATION 1 Normally Opened & 1 Normally Closed
        CONTROL TYPE Automatic/Manual
        FREQUENCY 50/60 Hz
        FOR USE WITH CA7-9 to CA7-23 Contactors
        MOUNTING METHOD Direct
        PLEASE NOTE 1 Phase
        OPERATIONAL VOLTAGE 690 Volt AC
        SETTING RANGE TO (AMP) 3.2
        PRODUCT TYPE Contactor Overloads
        TERMINAL CONNECTION Screw
        TIGHTENING TORQUE 1.5-2.2 N/m
        TEMPERATURE -20 to 60 deg C
        SETTING RANGE FROM (AMP) 2.3
        TRIP CHARACTERISTIC Class 10A

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Sprecher + Schuh
        SKU CT7N-23-B32
        Barcode # 10662074718716
        Package Weight 0.115kg
        Package Width 0.075m
        Package Height 0.050m
        Package Length 0.085m
        View Datasheet
        TYPE VALUE
        Type Thermal Overload Relay
        Brand Sprecher+Schuh
