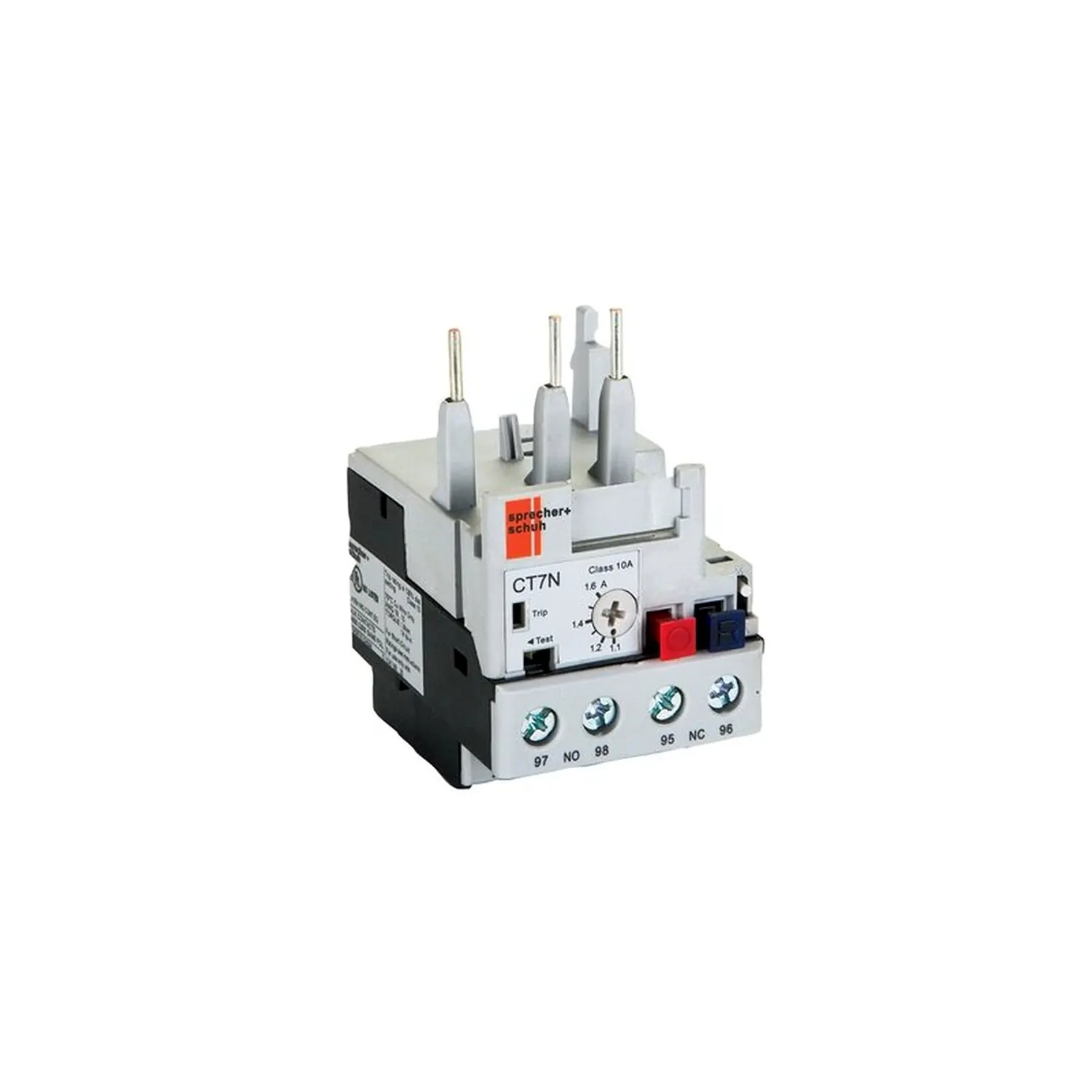

    Sprecher+Schuh CT7N-23-C12 | Thermal Overload Relay 9-12.5 Amps 690V

    Description:

    Upgrade your motor protection with the Sprecher+Schuh CT7N-23-C12 Thermal Overload Relay, a robust solution designed to ensure the longevity and optimal performance of your motors. Experience peace of mind knowing that your valuable equipment is consistently protected against a range of conditions, making this relay the ideal choice for various applications in your home.

    Benefits:

    • Dependable Motor Protection: The CT7N-23-C12 provides reliable and consistent motor protection, offering peace of mind for the safe operation of your equipment.

    • Versatile Application: Suitable for use with CA7-9 to CA7-23 Contactors, this relay is designed for diverse applications, including light industry, conveyors, fans, pumps, VFD-controlled motors, and DC motors.

    • Selectable Reset Options: Tailor the reset process to your preference with the selectable reset switch, providing flexibility with both manual and automatic reset modes.

    • Optional Remote Reset Solenoid: Enhance convenience by opting for the remote reset solenoid, streamlining the reset process for efficient motor management.

    • Ideal for Single-Phase Conditions: Specifically designed for single-phase applications, the CT7N-23-C12 ensures reliable protection in various motor setups.

    • Ambient Temperature Compensation: The relay's ambient temperature compensation feature maintains consistent performance over a wide temperature range (-20 to 60 degrees C).

    FAQ:

    Q: What is the voltage rating of the CT7N-23-C12 Thermal Overload Relay?
    A:
    The relay is rated for 690 Volt AC, ensuring robust protection for your motors.

    Q: Can it be used for single-phase applications?
    A:
    Yes, the CT7N-23-C12 is designed for single-phase applications, catering to a variety of motor setups.

    Q: Is the reset process customizable?
    A:
    Certainly. The CT7N-23-C12 offers a selectable reset switch, allowing users to choose between manual and automatic reset modes.

    Q: What applications are ideal for this thermal overload relay?
    A:
    The CT7N-23-C12 is perfect for light industry and low-critical process environments, including conveyors, fans, pumps, VFD-controlled motors, and DC motors.

    Elevate your motor protection strategy with the Sprecher+Schuh CT7N-23-C12 Thermal Overload Relay, ensuring your motors operate at their best. Make the smart choice for your home's equipment—choose the CT7N-23-C12.

    (CT7N-23-C12)

    Warranty

    The warranty starts from the Invoice Date.

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    UNSPSC CLASS 39122300
    UOM EA
    CONTACT CONFIGURATION 1 Normally Opened & 1 Normally Closed
    CONTROL TYPE Automatic/Manual
    FREQUENCY 50/60 Hz
    FOR USE WITH CA7-9 to CA7-23 Contactors
    MOUNTING METHOD Direct
    PLEASE NOTE 1 Phase
    OPERATIONAL VOLTAGE 690 Volt AC
    SETTING RANGE TO (AMP) 12.5
    PRODUCT TYPE Contactor Overloads
    TERMINAL CONNECTION Screw
    TIGHTENING TORQUE 1.5-2.2 N/m
    TEMPERATURE -20 to 60 deg C
    SETTING RANGE FROM (AMP) 9.0
    TRIP CHARACTERISTIC Class 10A
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Sprecher + Schuh
    SKU CT7N-23-C12
    Barcode # 10662074718778
    Package Weight 0.115kg
    Package Width 0.075m
    Package Height 0.050m
    Package Length 0.085m
    TYPE VALUE
    Type Thermal Overload Relay
    Brand Sprecher+Schuh
