Learn more by watching our Theben PIRA-T6-Mini | Recessed Mini Motion and Presence Detector PIR | 360° Detection video.

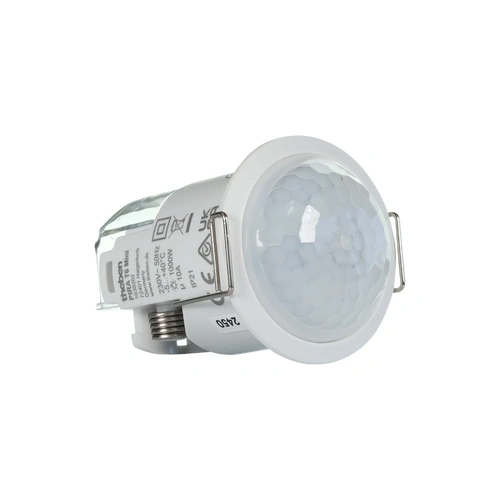

Theben PIRA-T6-Mini | Recessed Mini Motion and Presence Detector PIR | 360° Detection

The Theben PIRA-T6-Mini is a compact 360° motion and presence detector designed for ceiling recess installation in indoor settings like homes, offices, and commercial spaces. Its discreet design delivers smart lighting control based on both movement and ambient brightness, covering up to 28m² at 2.5m height.

It features a single 230V lighting channel compatible with LED (up to 200W), halogen, energy-saving, and fluorescent lamps. The sensor operates automatically, switching lights on when motion and low light are detected. With an adjustable brightness threshold (5–1000 lux) and a switch-off delay from 5 seconds to 15 minutes, it offers custom control to suit various room conditions.

Factory default settings (100 lux / 2-minute delay) provide plug-and-play functionality. The compact housing fits 2–3 metre ceilings and is IP21 rated for dry indoor areas. Ideal for applications where low-profile and reliable motion detection is needed.

PIRA-T6-Mini Features

360° detection up to 28m²: Full-room coverage with a 6m diameter at 2.5m ceiling height.
Automatic light control: Responds to motion and brightness for hands-free efficiency.
Adjustable lux and delay: Customisable from 5–1000 lux and 5s to 15min delay.
LED compatible (up to 200W): Works with most modern lighting types.
Compact & discreet: Ø50mm faceplate with 74.5mm install depth for minimal visibility.

PIRA-T6-Mini FAQ
Q: What is the detection area of this sensor?
A: It detects movement in a 28m² area (6m diameter) when installed at 2.5m height.

Q: Is this sensor compatible with LED lights?
A: Yes, it supports LED loads up to 200W along with other common lamp types.

Q: What are the preset factory settings?
A: It’s set to 100 lux brightness and a 2-minute switch-off delay for quick setup.

(PIRA-T6-Mini)

100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

Items must be unused, with all parts, accessories, and original packaging.
We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
Proof of purchase is required.
Return shipping is the responsibility of the customer.

If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

All products come with a manufacturer’s or supplier’s warranty

Warranty starts from the Invoice Date
Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
Sparky Direct isn’t responsible for losses caused by product failure.
Warranties are void if products aren’t installed by a licensed electrician.

Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.

Sparky Direct will pay for return shipping via an emailed return label.
If the fault is confirmed, we will send you a replacement item or provide a refund.

Exclusions
We can’t accept returns for:

Items that have been installed, modified, or used
Clearance, End of life, Discontinued, or special order items (unless faulty)
All PPE Items
Goods returned without original packaging or proof of purchase

How to Request a Return

Contact our customer service team with your order number.
Confirm it’s eligible under our return or warranty policy.
Pack the item securely and return it using a trackable service.
Once we receive and inspect it, we’ll process your refund or replacement.

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Specification	Details
Model	PIRA T6 Mini
Operating Voltage	220 – 240 V AC, 50 / 60 Hz
Installation Type	Ceiling installation
Mounting Height	2 – 3 m
Detection Range (Ø)	max. 7 m
Detection Angle	360°
Light Level	5 – 2000 lx
Time Setting	30 sec – 20 min
Max. Switching Capacity	2000 W / 8 A
IP Rating	IP20
Ambient Temperature	-10 °C to +50 °C
Dimensions	Ø 78 x 55 mm
Housing Colour	Pure white (RAL 9010)

Installation Height	Detection Range (Tangential)	Detection Range (Radial)
2.0 m	ø 5 m	ø 2 m
2.5 m	ø 6 m	ø 2.5 m
3.0 m	ø 7 m	ø 3 m

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Theben
SKU	PIRA-T6-Mini
Barcode #	4003468102169
Package Weight	0.160kg
Package Width	0.100m
Package Height	0.100m
Package Length	0.050m

View Datasheet

TYPE	VALUE
Type	PIR Sensor
Brand	Theben
Colour	White
Frequency	50Hz
IP Rating	IP21
Operating Voltage	230V AC
Detection Angle	360°
Brightness Range	5 lx - 1000 lx
Installation Height	2.5 - 3.5 m
