    Description

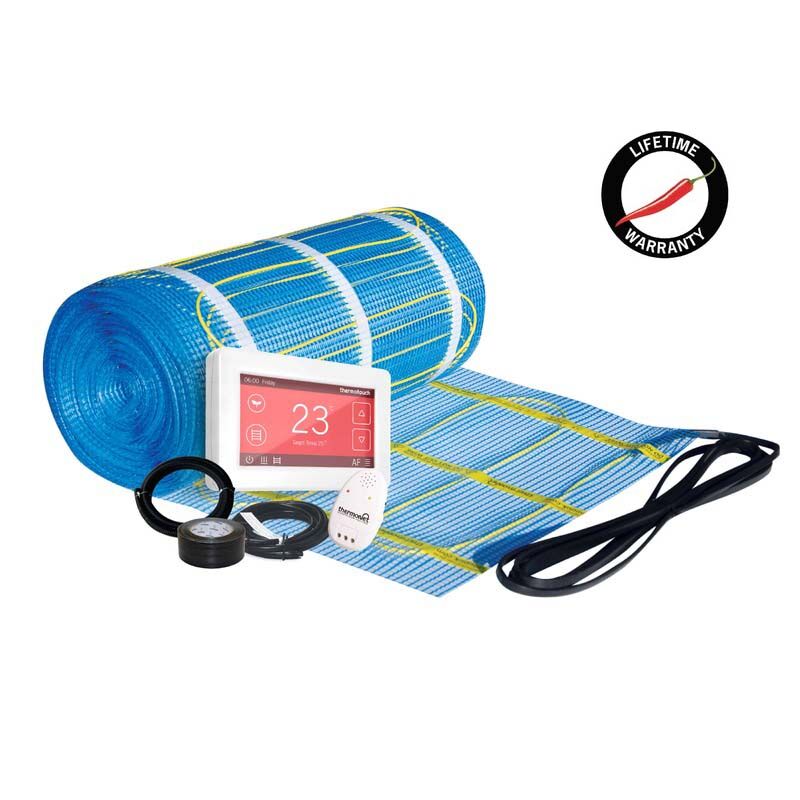

    Thermogroup 112005TD | Thermonet Underfloor Heating Kit 5x0.5m - 2.5m² 500Watts

    The Thermogroup 112005TD Thermonet Underfloor Heating Kit is designed to deliver exceptional warmth over a 2.5 square meter area, with a 500-watt power output for efficient heating. It is ideal for screed layers from 20mm to 50mm and is most effective when installed above insulation boards to enhance comfort and efficiency. The kit includes a special, safe cable that does not emit electromagnetic fields (Zero EMF), ensuring your health and safety while providing steady warmth.

    With a self-adhesive mesh backing, this system makes installation straightforward by securely attaching the heating mat to the base and enabling easy levelling and tile placement. With its 200W/m² power rating, this underfloor heating system is ideally suited for small spaces, providing an extensive heat output that efficiently warms the entire room. It's particularly effective in areas prone to high heat loss, a situation significantly improved with the addition of under-heating insulation.

    Thermonet Underfloor Kit Features:

    • In-screed Heating: Ideal for screeds of 20mm to 50mm, enhancing heat retention and efficiency.
    • Zero EMF Emission: Promotes a healthier living environment with stress-free cable construction.
    • Quick Installation: Self-adhesive mesh for fast and secure fitting.
    • High Heat Output: 200W/m² power ensures ample warmth, even in spaces prone to heat loss.
    • Durability: Built to last with a high protection rating and a lifetime warranty on the heating mat.

    Heating Kit Includes:

    Thermonet 200W/m² Mat
    Programmable Thermostat (5245)
    Floor Temperature Sensor
    Sensor Conduit, Fixing Tape
    Cable Monitor (6025)
    Installation Guide & Warranty Form.

    112005TD FAQ:

    Q: Can the Thermonet kit be used under any flooring type?
    A: Yes, it's compatible with most flooring types, offering versatile installation options.

    Q: What is the maximum temperature the Thermonet system can reach?
    A: The Thermonet system is designed to reach a maximum temperature of 28°C, providing comfortable warmth without overheating the space.

    Q: How does the system handle high heat loss areas?
    A: The 200W/m² rating provides significant warmth, with improved efficiency when installed over insulation, making it ideal for high heat loss areas.

    (112005TD)

    Warranty

    Warranty starts from Invoice Date


    Domestic Use: Lifetime
    Commercial Use: Lifetime
    Thermostat Warranty: 3 Years

    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Width 500mm
    Heated Width 430mm
    Thickness 3.5mm
    Area 2.5m²
    Max. Temperature 28°C
    Protection Rating IP68
    Wattage 200W/m²
    Amperage 2.08A
    Resistance 106Ω
    Conductor Type Single Ended
    Cold Tail Length 5m
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Thermogroup
    SKU 112005TD
    Barcode # 9349970011861
    Package Weight 2.500kg
    Package Width 0.220m
    Package Height 0.700m
    Package Length 0.220m
    TYPE VALUE
    Type Floor Heating
    Brand Thermogroup
