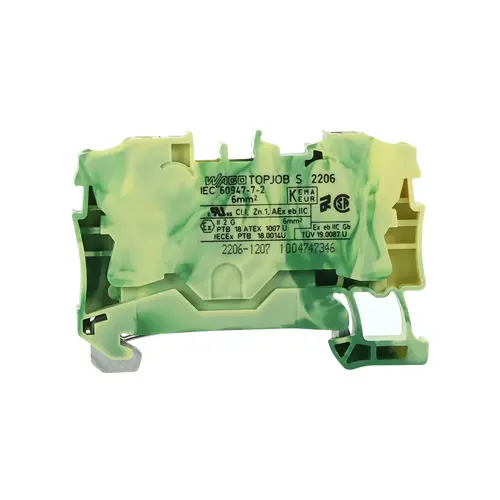

The Wago 2206-1207 is a two-conductor ground terminal block with a 6mm2 nominal cross-section, supplied in a pack of 50. The 2206-1207 accommodates 0.5 to 10mm2 copper conductors, mounts to DIN-35 rail at 7.5mm wide, and terminates through push-button CAGE CLAMP with an integrated test port. The insulating housing is green-yellow polyamide PA66.
Earth bars consume rail length rapidly once every circuit requires its own termination. At 7.5mm wide the block accommodates more positions across the same run than a comparable screw terminal. The 0.5 to 10mm2 range covers everything from control wiring through to a 10mm2 main earth on a single part number.
An earth connection that cannot be demonstrated becomes a problem at inspection. The integrated test port accepts a probe, so continuity is verified with conductors still terminated. Push-button CAGE CLAMP actuation maintains spring contact pressure rather than depending on a screw remaining torqued, and two jumper slots permit commoning across adjacent blocks using a push-in jumper bar.
The 2206-1207 is a green-yellow protective earth block and must not be used for active or neutral conductors. An end plate is a required accessory and is ordered separately, so allow for one at the end of each run. Wago publishes no rated current or nominal voltage for this block under IEC/EN 60947-7-2, so the earthing arrangement is sized by the installing electrician under AS/NZS 3000 rather than from a terminal rating.
(2206-1207)
0.5 to 10mm2 solid or fine-stranded copper, which is 20 to 8 AWG. The 6mm2 figure in the product name is the nominal cross-section, not the maximum the block accepts.
Solid conductors from 1 to 10mm2 and ferruled conductors from 2.5 to 6mm2 push in directly. Fine-stranded conductors need the operating tool, as does removing any conductor.
Wago publishes no rated current, nominal voltage, or rated surge voltage for this block under IEC/EN 60947-7-2. The earthing arrangement is sized by the installing electrician rather than from a terminal rating.
7.5mm, with a height of 57.3mm and a depth of 32.9mm measured from the upper edge of the DIN rail. Each block weighs 18g.
Yes. The 2206-1207 has two jumper slots, and a push-in jumper bar bridges adjacent blocks. Insert the bar and push down until it reaches the backstop.
Yes. Wago classifies an end and intermediate plate as a required accessory for this block, ordered separately. Allow for one at the end of each terminal run.
Hazardous area approvals under ATEX, IECEx, AEx, CCC and EAC for Ex eb IIC Gb and Ex eb I Mb, plus marine approvals from ABS, Bureau Veritas, DNV GL and Lloyds Register, and EN 50155 rail testing.
Polyamide PA66, material group I, to UL94 V0 flammability class with a fire load of 0.196 MJ. Continuous operating temperature runs from minus 60 to plus 105 degrees C.
The Wago 2206-1207 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Item Number | 2206-1207 |
| Connection Technology | Push-in CAGE CLAMP® |
| Clamping Units | 2 |
| Nominal Cross-Section | 6 mm² |
| Solid Conductor Range | 0.5 … 10 mm² / 20 … 8 AWG |
| Fine-Stranded Conductor Range | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip Length | 13 … 15 mm / 0.51 … 0.59 inches |
| Width | 7.5 mm / 0.295 inches |
| Height | 57.3 mm / 2.256 inches |
| Depth from Upper-Edge of DIN-rail | 32.9 mm / 1.295 inches |
| Material | Polyamide (PA66) |
| Color | Green-Yellow |
| Weight | 18 g |
| Operating Temperature | -60°C to +105°C |
| Flammability Class | UL94 V0 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 2206-1207 |
| Model # | 2206-1207 |
| Barcode # | 4055143846721 |
| Package Weight | 0.940kg |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Brand | Wago |
| Colour | Yellow/Green |
| Height (mm) | 57.3 |
| Width (mm) | 7.5 |
| Depth (mm) | 32.9 |
| Mounting | DIN Rail |
| Quantity | 50 |
| Connection Type | Push-in Cage Clamp |
| Solid Conductor | 0.5 - 10mm² |
| Fine-Stranded Conductor | 0.5 - 10mm² |
