Rinnai | T Series Reverse Cycle Split System 7.0kW | R32 Inverter

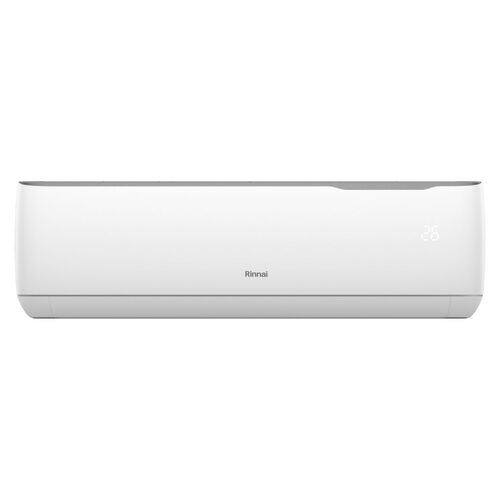

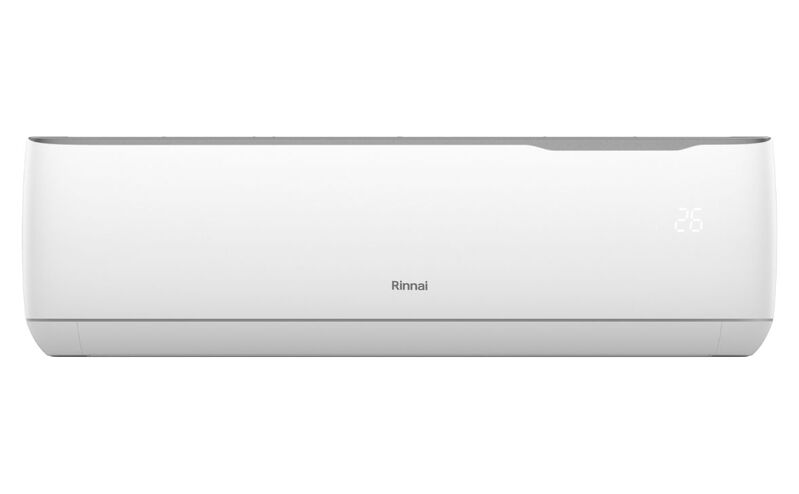

The Rinnai HSNRT70B is a reverse cycle inverter split system rated 7.00kW cooling and 8.2kW heating, running on R32 refrigerant. The HSNRT70B pairs the HINRT70B indoor unit with the HONRT70B outdoor unit, both fed from a single phase 220 to 240V supply. Rated capacities are tested to AS/NZS 3823.2 with five metres of interconnecting pipe.
Sizing is the first call on any split system install. The HSNRT70B is rated for 35 to 47 square metres under a 2.6 metre insulated ceiling. Its cooling range of 1.8 to 7.5kW lets the inverter track the load instead of cycling the compressor on and off. Noise counts in bedrooms and living areas, and indoor sound pressure at one metre drops to 36 dB(A) on silent.
Pipe runs decide where the outdoor unit lands. The HSNRT70B carries a 30 metre maximum pipe length with the first 10 metres chargeless and 15 grams of R32 per metre beyond that. Supply is single phase 220 to 240V on a recommended 20A circuit breaker. If a fault shows up, the self-diagnosis function shuts the system down and puts an error code on the indoor display.
Features
- 7.0kW rated cooling — the HSNRT70B is rated at 7.00kW cooling output, with a working range of 1.8 to 7.5kW.
- 8.2kW rated heating — reverse cycle heating output reaches 8.2kW, so the same head carries the room through winter.
- R32 refrigerant — the T Series runs on R32, which carries a lower carbon footprint than traditional refrigerants.
- Wi-Fi app control — the Freedom AC app on Android and iOS sets temperature, fan speed and on or off from anywhere with an internet connection.
- Voice control — the system is discoverable by Google Home and Amazon Alexa smart speakers.
- DRED enabled — demand response capability cuts power consumption at critical peak load times, subject to availability from the energy provider.
- Fresh function — a three minute cleaning cycle runs at every shutdown to clear excess moisture from the indoor unit.
- Self-diagnosis function — the system switches off on a fault and displays the relevant error code on the indoor unit.
- Zoned star ratings — cooling is rated 4.0, 3.5 and 4.0 stars and heating 3.5, 2.0 and 1.5 stars across the hot, average and cold zones.
- Sound pressure from 36 dB(A) — indoor sound pressure at one metre runs 50, 48, 44, 40 and 36 dB(A) from turbo through to silent.
- 30 metre pipe length — the maximum interconnecting pipe run for the HSNRT70B is 30 metres.
- Not for commercial use — the HSNRT70B is not intended or designed for commercial installations.
Where to use
- Open plan living areas — the HSNRT70B covers 35 to 47 square metres under an insulated ceiling up to 2.6 metres.
- Master bedrooms — the silent setting holds indoor sound pressure at 36 dB(A) measured one metre from the head.
- Long room layouts — airflow distance reaches up to 15 metres, carrying air to the far end of a long space.
- Awkward room shapes — four-way swing louvres direct air both horizontally and vertically to even out temperature across the room.
- Timed daily operation — the delay timer switches the system on or off from 30 minutes to 24 hours ahead.
- Humid coastal rooms — dehumidifying mode removes moisture from the room air at 2.2 litres per hour.
- Multi-storey placement — up to 20 metres of vertical separation is allowed between the HSNRT70B indoor and outdoor units.
The HSNRT70B is not intended or designed for commercial use. Cooling operates in ambient temperatures from -15°C to 52°C, and heating from -15°C to 24°C, so conditions outside those limits sit beyond the rated operating range. Installation is intended for licensed and qualified professionals.
