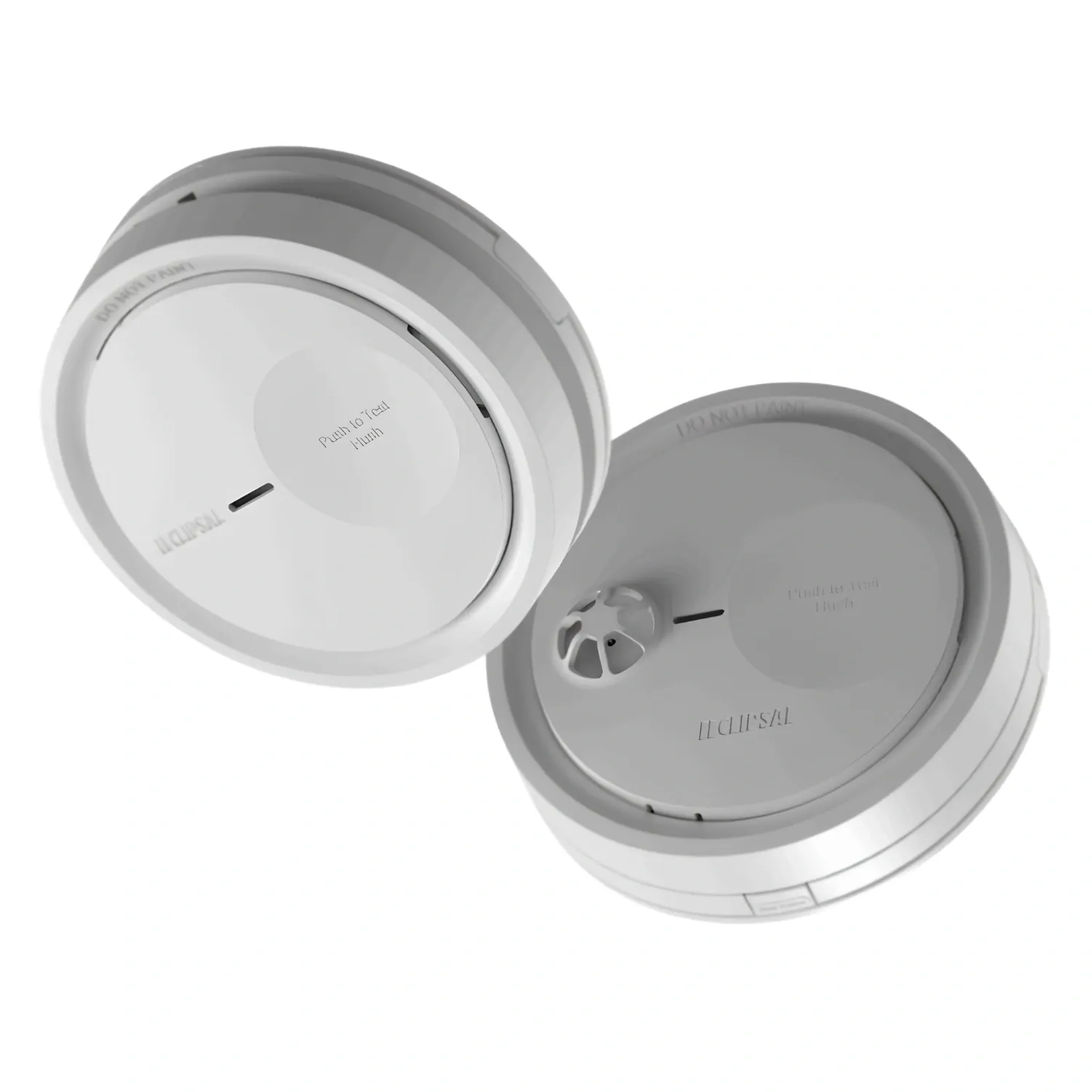

Clipsal by Schneider Electric | Fire Tek Photoelectric Smoke Alarm 230V | 10-Year Lithium Battery
The Clipsal 755PSMA5L is a mains-powered photoelectric smoke alarm rated 230V AC/DC 50Hz, with a sealed 3V lithium battery. The alarm detects smouldering fires and open flame, and sounds an 85 dB local alarm. The 755PSMA5L sits in the Clipsal Fire Tek range and conforms to AS 3786.
A replaceable backup cell needs changing each year, and a flat battery chirps until it is replaced. The 755PSMA5L runs a sealed 3V lithium battery rated for 10 years, which matches the alarm's own service life. Queensland requires photoelectric alarms in every dwelling from 1 January 2027, and the 755PSMA5L conforms to AS 3786.
The 755PSMA5L surface mounts to a ceiling and fixes at four fixing points, so there is no cut-out to make. Mains cable terminates at a terminal on the back of the device, and the alarm interconnects over wiring. A single wired loop carries up to 40 alarms, which covers the bedrooms, hallways and levels of a large dwelling.
Features
- Photo-electric sensor — the 755PSMA5L detects smoke with a photo-electric sensing element, the type Australian fire authorities recommend for domestic use.
- 10-year battery life — the sealed 3V lithium cell is rated for 10 years of service, matching the replacement interval of the alarm itself.
- 230V mains supply — the alarm runs from a 230V AC/DC supply at 50Hz, wired in as a fixed part of the installation.
- Interconnects 40 alarms — a wired loop links as many as 40 units, so one alarm triggering sounds every alarm on the loop.
- 85 dB alarm horn — the sounder is rated at 85 dB for indoor use, loud enough to carry through a domestic hallway.
- Push-button test — the 755PSMA5L carries one test button for checking that the sensor and sounder are working.
- Red and green indicator — an LED on the face shows alarm status, running green in normal operation and red on alarm.
- Four fixing points — the mounting base fixes to the ceiling at four screw points before the alarm body is clipped on.
- Rear cable terminal — the mains cable terminates at a terminal on the back of the device rather than a flying lead.
- AS 3786 conformance — the 755PSMA5L conforms to AS 3786, the Australian standard covering smoke alarms in domestic buildings.
- Indoor use only — the 755PSMA5L is rated for indoor installation and is not suitable for external or exposed positions.
- ABS and PC housing — the alarm body is moulded from ABS and polycarbonate, finished in White to RAL 9003.
Where to use
- Bedrooms and sleeping areas — the alarm gives early warning of smouldering fires, which develop slowly and produce smoke well before flame.
- Hallways serving bedrooms — the 755PSMA5L surface mounts to a ceiling, which suits the hallway positions named in state smoke alarm rules.
- Multi-level dwellings — a wired interconnect loop carries up to 40 alarms, covering every level of a two-storey or three-storey home.
- Ten-year alarm replacement — the 10-year rated battery matches the replacement interval for the unit, so the cell and the alarm reach end of life together.
- New builds and renovations — the 755PSMA5L needs a 230V mains connection, which is run at rough-in on new and rewired circuits.
- Rental and investment properties — the 755PSMA5L conforms to AS 3786, which is the certification basis for a compliant domestic smoke alarm.
The 755PSMA5L is rated for indoor installation and is not suitable for outdoor positions, verandahs or carports. The IP20 rating gives no water protection, so the alarm should not be fitted in bathrooms, laundries or wet areas. Ambient conditions must sit between 0 and 45 degrees Celsius, at 90 per cent humidity or below.
