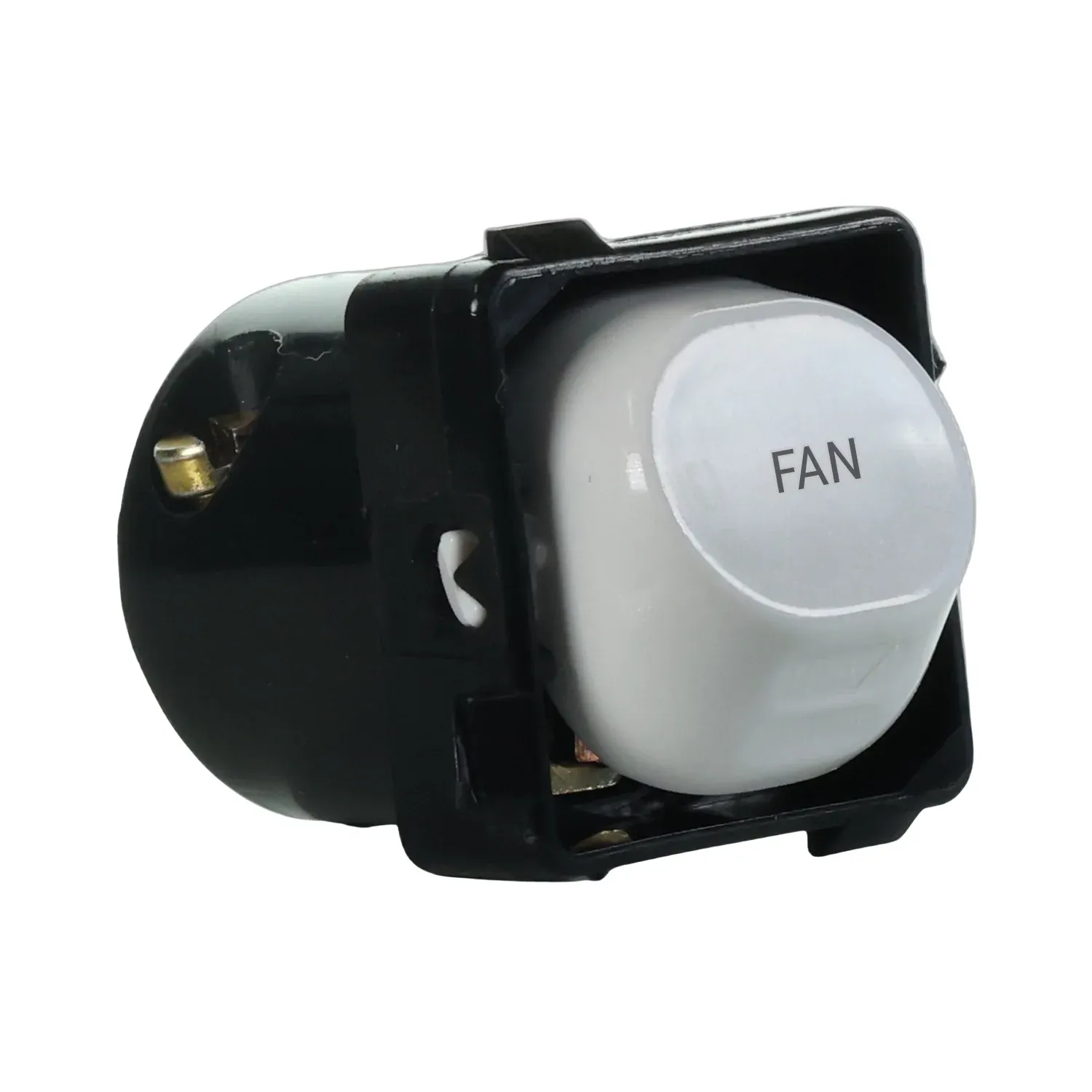

The Clipsal SD-FAN-TEXT-30M-WE is a 30 Series switch mechanism rated 10 A at 250 V AC, engraved with the word FAN. The SD-FAN-TEXT-30M-WE is built on a standard Clipsal 30M-WE mechanism, with the text cut into the white polycarbonate dolly rather than printed on it. It wires as a one-way or two-way switch and carries a loop terminal. The mechanism is supplied on its own, so a grid plate and cover plate are needed to complete the switch.
A bank of 30 Series mechanisms carries identical white rockers, with nothing on the dolly to say which circuit each one runs. The SD-FAN-TEXT-30M-WE carries the word FAN engraved into the dolly face, so the fan circuit is named at the switch. The marking is cut into the polycarbonate rather than printed on top of it. Engraving is the only change made to a standard Clipsal 30M-WE mechanism.
The SD-FAN-TEXT-30M-WE is supplied as a mechanism, not a complete switch. It fits Classic, 2000 Series and Standard range plates, so an existing switch position can be changed over without touching the plate. In a multi-gang plate it sits in line with plain 30 Series mechanisms, matched on size and finish.
The SD-FAN-TEXT-30M-WE switches a fan on and off, and does not vary fan speed. It is a flush indoor mechanism and is not rated for direct weather exposure or damp locations. The engraving is cut in-house, so text colour and size can differ from factory-marked 30 Series mechanisms, and mixing the two on one plate is not recommended.
(SD-FAN-TEXT-30M-WE)
It is a Clipsal 30 Series switch mechanism with the word FAN engraved into the white rocker dolly. The base mech is a standard 30M-WE rated 10 A at 250 V AC. The engraving is done in-house at Sparky Direct, so the circuit is named at the switch.
The text is cut into the polycarbonate dolly rather than printed onto it, so the marking is permanent. Because it is engraved in-house, the text colour and size can differ from factory-marked 30 Series mechs. Mixing the two on one plate is not recommended.
It carries up to 10 A at 250 V AC and holds an M rating of 100, so motor loads up to 100 W are within rating. Fluorescent load is rated to 10 A and LED load to 100 W. Check the fan nameplate sits inside those figures first.
It is an on and off switch only, with no speed positions and no electronic control inside. A fan wired through it runs at full speed whenever the switch is on. Speed control needs a separate mechanism built for the job.
The mechanism is supplied on its own, with no grid plate or cover plate in the pack. You need both to finish the switch. It fits Clipsal Classic, 2000 Series and Standard range plates, the same as the 30M-WE it is built on.
The mech wires for either one-way or two-way control, so the same unit works for a single switch position or a pair. A loop terminal is built in for landing a looped active. Wiring is a licensed electrician's job.
A licensed electrician. The mech lands live wiring behind the plate, so it is not a DIY swap. Switch off at the switchboard before any work starts. Warranty is void if the product is not installed by a licensed electrician.
One year for domestic use and one year for commercial use, running from the invoice date. Because the mechanism is engraved in-house, warranty claims are handled by returning the product to Sparky Direct. Warranty is void if the product is not installed by a licensed electrician.
The Clipsal SD-FAN-TEXT-30M-WE is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | SD-FAN-TEXT-30M-WE |
| Model # | 30M-WE |
| Barcode # | 2000000014074 |
| Package Weight | 0.014kg |
| TYPE | VALUE |
|---|---|
| Type | Switches |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal 30 Series |
| Colour | White |
| Rated Current (A) | 10 |
| Complete / Skin Only / Grid Plate Only | Mechanism Only |
| Number of Switches / Gangs | 1 |
| Mounting | Flush |
| Number of Poles | 1 |
| Rated Voltage (V) | 250 |
