Rinnai | TX Series Inverter Split System Air Conditioner 2.5kW | R32 Reverse Cycle

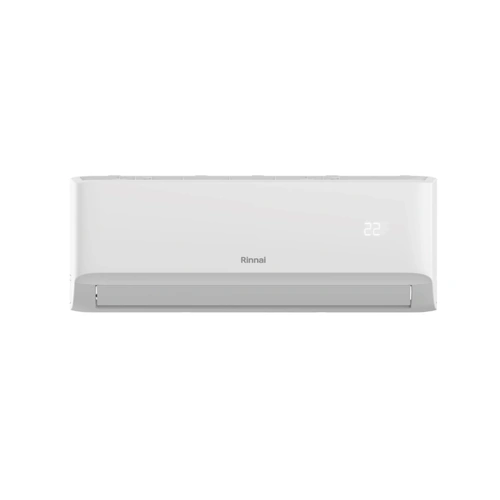

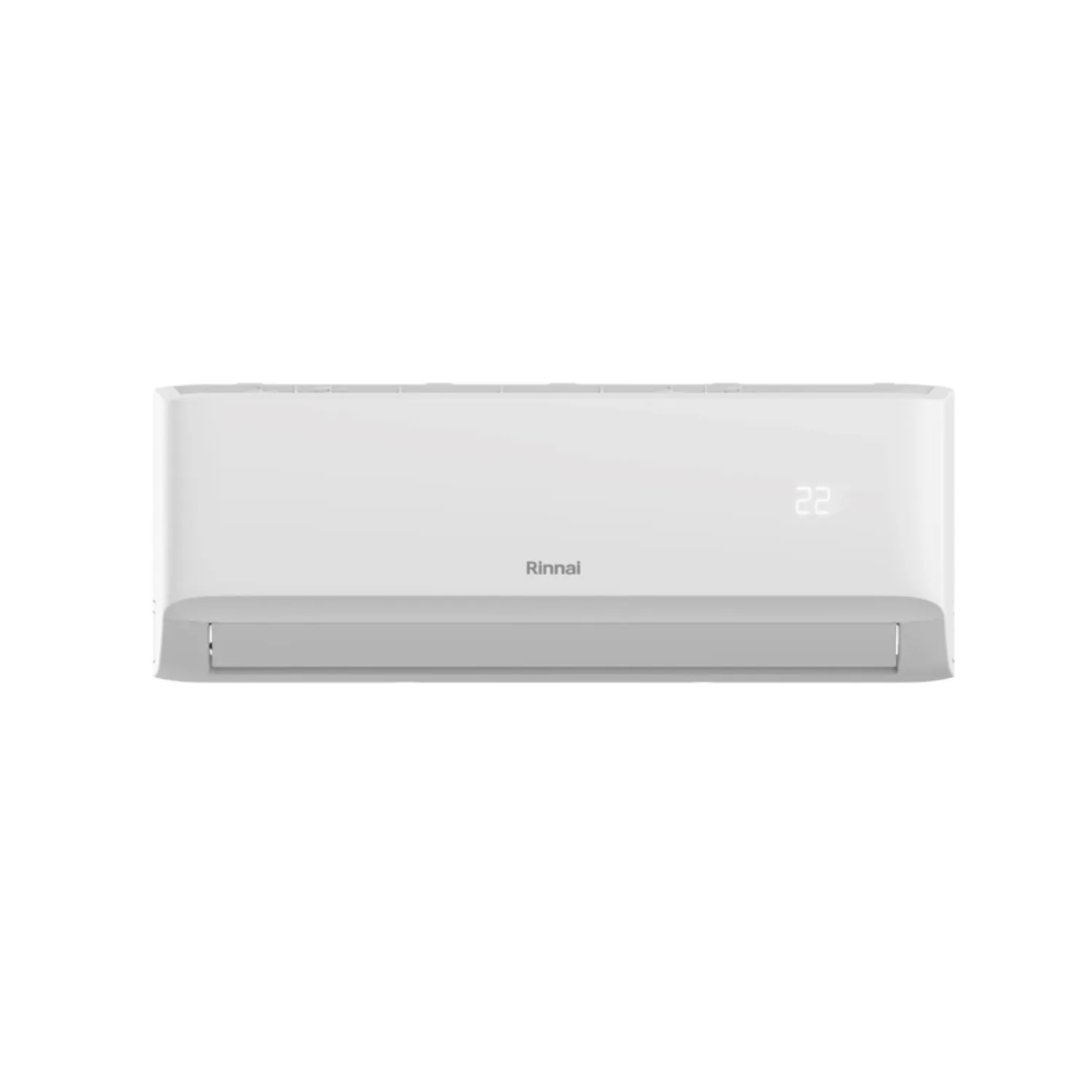

The Rinnai HSNRTX25 is a reverse cycle inverter split system rated 2.5 kW cooling and 2.8 kW heating. The HSNRTX25 pairs the HINRTX25 indoor head, finished in matte white, with the HONRTX25 outdoor unit, charged with R32 refrigerant. Capacity figures follow AS/NZS 3823.2 testing, and the indoor unit carries built-in Wi-Fi.
The HSNRTX25 covers 11 to 17 square metres under a 2.6 metre insulated ceiling, which is a standard bedroom or study. Inverter control holds the setpoint by varying compressor speed instead of cycling hard on and off. Dehumidifying mode pulls up to 1.3 litres an hour out of the room on humid summer running.
The HONRTX25 comes pre-charged for 15 metres of pipe, supports a total run of 25 metres with refrigerant added beyond that, and allows 10 metres of vertical separation. Pair coil runs 1/4 inch and 3/8 inch, which is 6.35 mm on the liquid line and 9.52 mm on the gas line. Maximum input power is 2300 W with a 10.5 A current draw across cooling and heating. GoldGuard coil coating on the outdoor unit adds corrosion protection for coastal and harsh sites.
Carton sizes and weights
- Indoor unit (HINRTX25) — 375 x 875 x 288 mm boxed, 11.1 kg gross and 8.6 kg bare.
- Outdoor unit (HONRTX25) — 610 x 887 x 337 mm boxed, 27.0 kg gross and 24.7 kg bare.
The longest carton runs 887 mm, and the two boxes together come to 38.1 kg. Check that the vehicle or trailer takes both cartons before collecting. The outdoor unit must stay upright in transit and cannot be laid on its side.
Features
- 2.5 kW rated cooling — the HSNRTX25 delivers a rated 2.5 kW in cooling mode, tested with 5 metres of interconnecting pipe.
- 2.8 kW rated heating — reverse cycle operation puts out more in heating than cooling, so winter duty is covered on the same hardware.
- Modulating capacity range — cooling output varies between 0.90 kW and 3.45 kW as the inverter compressor tracks the load.
- R32 refrigerant — the system runs on R32, the current low global warming potential refrigerant for residential splits, with a 0.62 kg factory charge.
- 5.5 star cooling rating — rated 5.5 stars in the hot climate zone, with an annualised energy efficiency ratio of 4.61.
- Built-in Wi-Fi — the NetHome Plus app runs scheduling, mode and setpoint control from a phone without an added adapter.
- Voice control — the HSNRTX25 responds to Google Home and Amazon Alexa devices for hands-free operation.
- HEPA air filtration — removes up to 99 percent of dust and reduces bacteria carried through the indoor coil.
- DRED enabled — supports demand response signalling where the electricity retailer offers a participating tariff.
- GoldGuard coil coating — 14-karat gold plating on the outdoor coil for corrosion resistance in coastal and harsh conditions.
- 20.0 dB(A) minimum fan — sound pressure at one metre drops to 20.0 dB(A) on the lowest indoor fan setting.
- Outdoor ambient limits — rated from -15 to 50 degrees Celsius in cooling and -15 to 24 degrees in heating, not beyond.
Where to use
- Standard bedrooms — the HSNRTX25 is sized for 11 to 17 square metres, which covers a typical bedroom under a 2.6 metre ceiling.
- Home offices and studies — the low fan setting sits at 20.0 dB(A) at one metre, quiet enough to work and take calls under.
- Small sitting rooms — 2.8 kW of heating output carries a single room through winter without a separate heater.
- Coastal and harsh sites — GoldGuard coil coating on the outdoor unit suits salt air and dusty inland exposure.
- Humid summer rooms — dehumidifying mode strips up to 1.3 litres an hour, which matters in Queensland and northern New South Wales.
The HSNRTX25 is not rated for outdoor ambient below -15 degrees Celsius, and heating output falls as the outside temperature drops toward that limit. It is sized for 11 to 17 square metres, so living areas and open-plan rooms sit outside its capacity. Refrigerant and electrical work make this a licensed install, not a DIY fit-off.
