Rinnai | TX Series Inverter Split System Air Conditioner 6.0kW | R32 Reverse Cycle

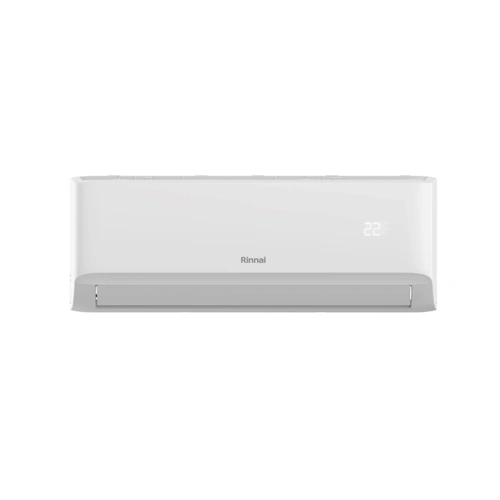

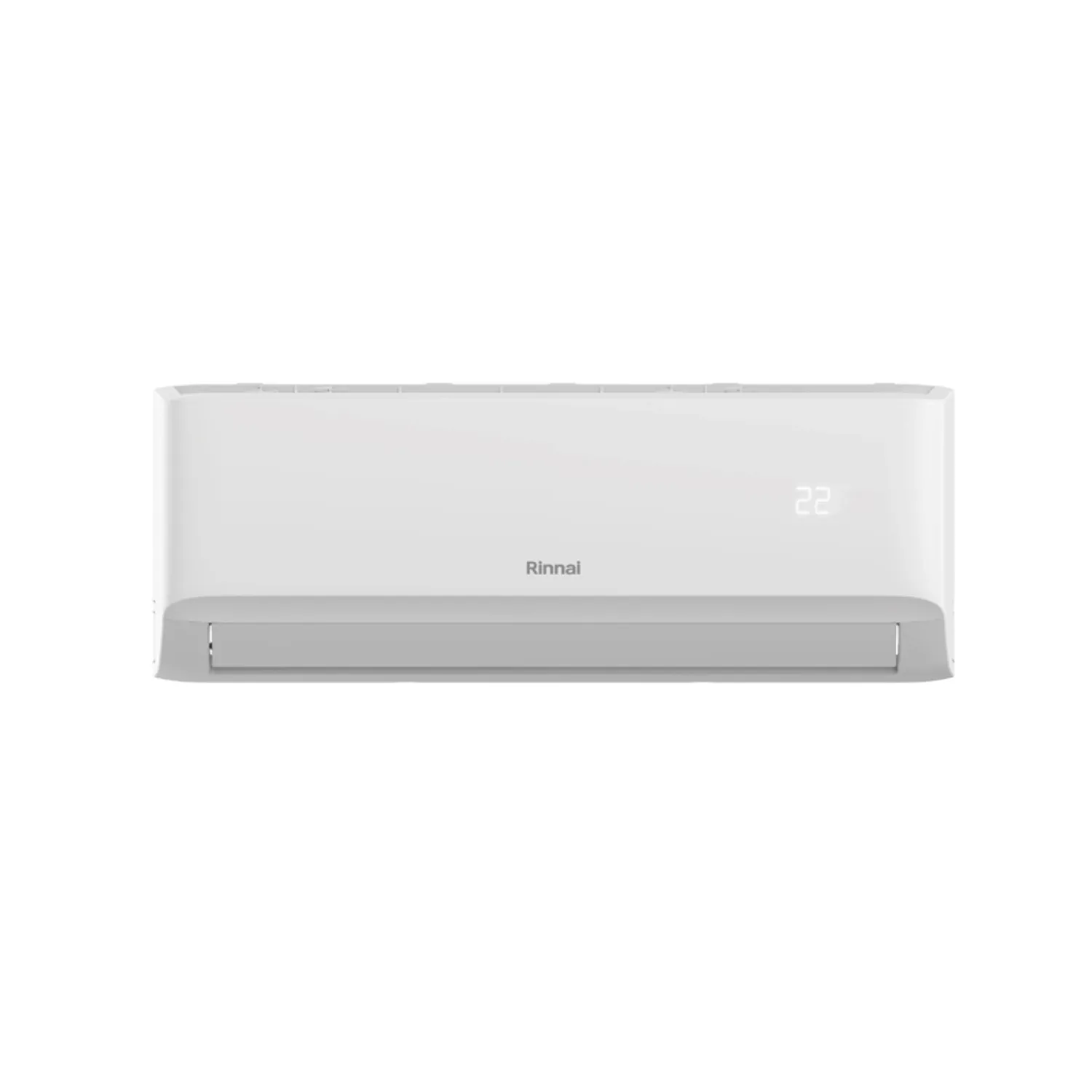

The Rinnai HSNRTX60 is a reverse cycle inverter split system rated at 6.0 kW cooling and 6.5 kW heating. The HSNRTX60 pairs the HINRTX60 indoor head, finished in matte white, with the HONRTX60 outdoor unit, charged with R32 refrigerant. Capacity figures follow AS/NZS 3823.2 testing, and the indoor unit carries built-in Wi-Fi.
The HSNRTX60 covers 27 to 40 square metres under a 2.6 metre insulated ceiling, which is a large living and dining area. Inverter control holds the setpoint by varying compressor speed instead of cycling hard on and off. Dehumidifying mode removes up to 2.5 litres an hour from the room during humid summer running.
The HONRTX60 comes pre-charged for 15 metres of pipe, supports a total run of 30 metres with refrigerant added beyond that, and allows 20 metres of vertical separation. Pair coil runs 1/4 inch and 1/2 inch, which is 6.35 mm on the liquid line and 12.70 mm on the gas line. Maximum input power is 3400 W with a 15.5 A current draw across cooling and heating. GoldGuard coil coating on the outdoor unit adds corrosion protection for coastal and harsh sites.
Carton sizes and weights
- Indoor unit (HINRTX60) — 405 x 1045 x 308 mm boxed, 14.6 kg gross and 11.0 kg bare.
- Outdoor unit (HONRTX60) — 750 x 1030 x 438 mm boxed, 42.1 kg gross and 38.6 kg bare.
The longest carton is 1045 mm, and the two boxes together weigh 56.7 kg. Check that the vehicle or trailer takes both cartons before collecting. The outdoor unit must stay upright in transit and cannot be laid on its side.
Features
- 6.0 kW rated cooling — the HSNRTX60 delivers a rated 6.0 kW in cooling mode, tested with 5 metres of interconnecting pipe.
- 6.5 kW rated heating — reverse cycle operation puts out more in heating than cooling, so winter duty is covered on the same hardware.
- Modulating capacity range — cooling output varies between 2.30 kW and 6.20 kW as the inverter compressor tracks the load.
- R32 refrigerant — the system runs on R32, the current low global warming potential refrigerant for residential splits, with a 1.26 kg factory charge.
- 4.0 star cooling rating — rated 4.0 stars in the hot climate zone, with an annualised energy efficiency ratio of 3.45.
- Built-in Wi-Fi — the NetHome Plus app runs scheduling, mode and setpoint control from a phone without an added adapter.
- Voice control — the HSNRTX60 responds to Google Home and Amazon Alexa devices for hands-free operation.
- HEPA air filtration — removes up to 99 percent of dust and reduces bacteria carried through the indoor coil.
- DRED enabled — supports demand response signalling where the electricity retailer offers a participating tariff.
- GoldGuard coil coating — 14-karat gold plating on the outdoor coil for corrosion resistance in coastal and harsh conditions.
- 20.0 dB(A) minimum fan — sound pressure at one metre drops to 20.0 dB(A) on the lowest indoor fan setting.
- Outdoor ambient limits — rated from -15 to 50 degrees Celsius in cooling and -15 to 24 degrees in heating, not beyond.
Where to use
- Large living and dining — the HSNRTX60 is sized for 27 to 40 square metres, which covers an open-plan lounge and dining area.
- Open-plan kitchens — 6.0 kW of cooling handles the heat load a cooktop and oven add to the room.
- Winter heating duty — 6.5 kW of heating output carries the same room through winter without a separate heater.
- Coastal and harsh sites — GoldGuard coil coating on the outdoor unit suits salt air and dusty inland exposure.
- Humid summer rooms — dehumidifying mode strips up to 2.5 litres an hour, which matters in Queensland and northern New South Wales.
The HSNRTX60 is not rated for outdoor ambient below -15 degrees Celsius, and heating output falls as the outside temperature drops toward that limit. It is sized for 27 to 40 square metres, so bedrooms and whole-house duty sit outside its capacity. Refrigerant and electrical work make this a licensed install, not a DIY fit-off.
