Rinnai | TX Series Inverter Split System Air Conditioner 9.0kW | R32 Reverse Cycle

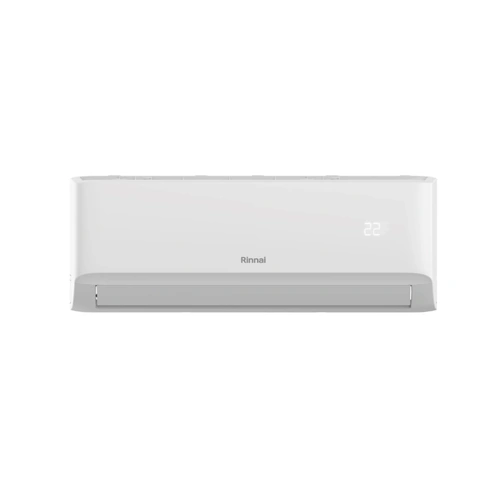

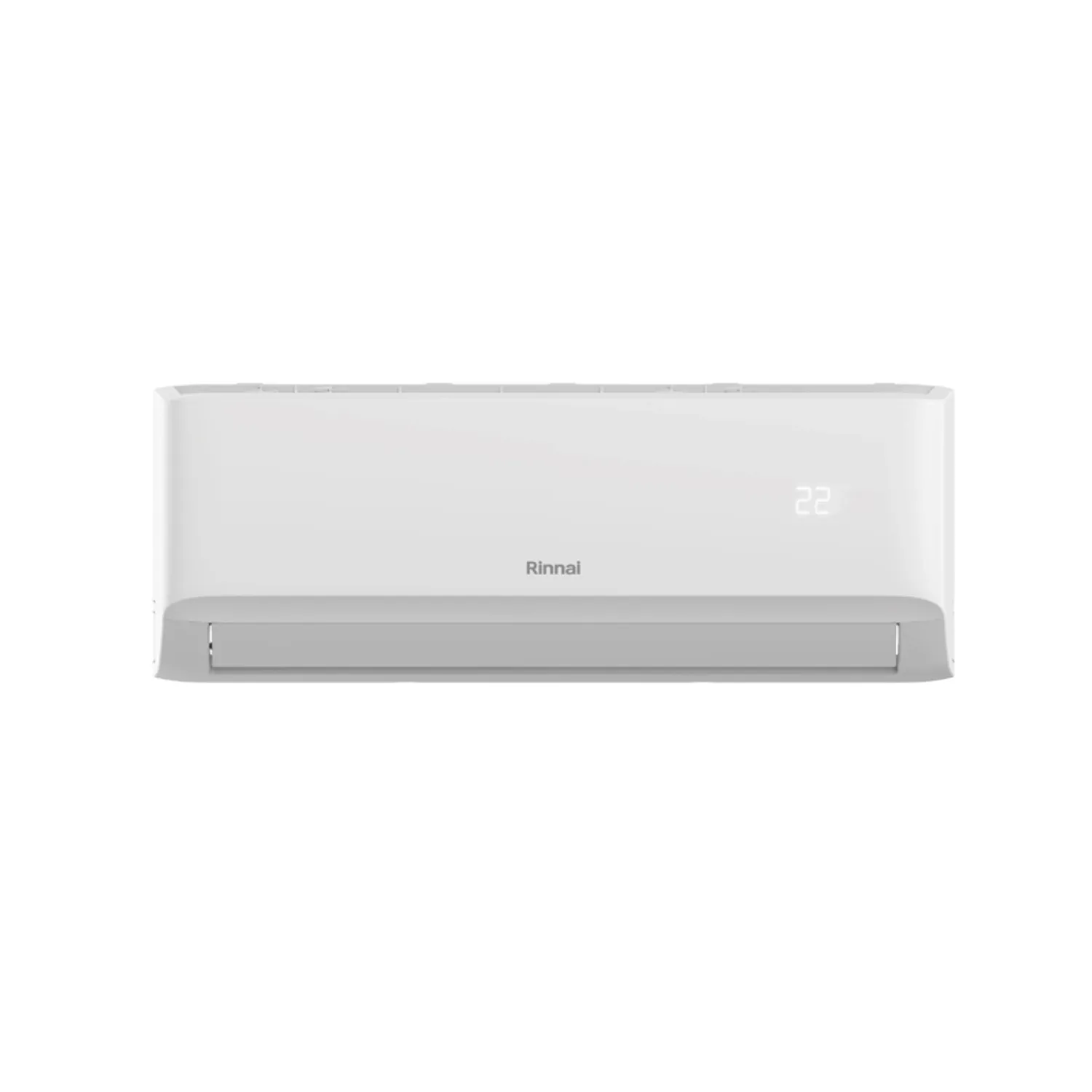

The Rinnai HSNRTX90 is a reverse cycle inverter split system air conditioner rated at 9.0 kW cooling and 9.5 kW heating. It pairs the HINRTX90 indoor head, finished in matte white, with the HONRTX90 outdoor unit. The HSNRTX90 runs on R32 refrigerant with built-in Wi-Fi and voice control. Capacities are tested to AS/NZS 3823.2 with a 5 metre interconnecting pipe run.
The HSNRTX90 is rated for 36 to 53 square metres under a 2.6 metre insulated ceiling, suiting open-plan living and large family rooms. Inverter control modulates cooling output between 3.22 and 9.38 kW, holding temperature rather than cycling between full output and off. It carries a 4.0-star cooling rating across all three zoned energy bands. Dehumidifying removes up to 3.2 litres per hour.
The HSNRTX90 is pre-charged for 15 metres of pipe, with a maximum total run of 50 metres and 25 metres vertical separation. Pair coil is 3/8 inch and 5/8 inch (9.52 mm liquid and 15.90 mm gas). Beyond 15 metres, add 24 grams of refrigerant per metre. Maximum input is 4100 W at 18.0 A, on a single-phase 220 to 240 V supply with a 25 A recommended circuit breaker.
Carton sizes and weights
- Indoor unit — 450 x 1340 x 383 mm boxed, 24.7 kg gross and 19.0 kg bare.
- Outdoor unit — 965 x 1090 x 500 mm boxed, 64.6 kg gross and 60.3 kg bare.
The longest carton is 1340 mm, and the two boxes together weigh 89.3 kg. The outdoor carton alone is 64.6 kg, so plan on two people to load it. Check that the vehicle or trailer can take both cartons before collecting. The outdoor unit must stay upright in transit and cannot be laid on its side.
Features
- 9.0kW rated cooling — the HSNRTX90 carries a rated cooling capacity of 9.0 kW at standard test conditions.
- 9.5kW rated heating — reverse cycle heating is rated at 9.5 kW, giving the unit more output in heating than in cooling.
- R32 refrigerant — the system runs on R32, which has a lower global warming potential than traditional refrigerants and uses a smaller charge volume.
- GoldGuard coil coating — the condenser coil carries a nanotechnology coating that raises resistance to oxidation and corrosion compared with a standard condenser coil.
- HEPA and Cold Catalyst filters — combined filtration reduces up to 99 per cent of bacteria and dust particles, tested by Intertek as an independent third-party laboratory.
- Built-in Wi-Fi — the HSNRTX90 connects to the NetHome Plus app for on/off, temperature and fan speed control from a mobile device.
- Voice control — manage settings through compatible Google Assistant and Amazon Alexa devices.
- Self-cleaning cycle — a manually activated cycle runs the indoor unit to 56 degrees C for sterilisation.
- Demand control — a Demand Response Enabling Device is fitted to cut consumption at peak load times, subject to energy provider availability.
- Five-speed indoor fan — airflow runs from 375 litres per second on turbo down to 97 litres per second on minimum.
- 7-year warranty — Rinnai covers the HSNRTX90 for 7 years in residential use and services it through the 1stCare national network.
- Indoor operating limits — cooling is rated for indoor temperatures of 16 to 32 degrees C, and heating for 0 to 30 degrees C.
Where to use
- Open-plan living and dining — the HSNRTX90 is rated for the 36 to 53 square metre band that a combined living, dining and kitchen zone typically falls into.
- Coastal and salt-exposed sites — the GoldGuard condenser coating raises corrosion resistance where the outdoor unit sits in salt-laden air.
- Holiday homes and managed rentals — the HSNRTX90 connects to the NetHome Plus app, so you can switch the system on before arrival without anyone on site.
- Rural and semi-rural living areas — the HEPA and Cold Catalyst filtration suits locations carrying higher airborne dust loads.
- Retrofits and unit blocks — the HSNRTX90 runs up to 50 metres of interconnecting pipe, covering positions where the outdoor unit sits well away from the room it serves.
The HSNRTX90 is not rated below -15 degrees C outdoor ambient, and heating is rated to a 24 degrees C outdoor ceiling. At 36 to 53 square metres, it is too small for a single bedroom or a whole-house load. A licensed installer must carry out the installation.
