Description:

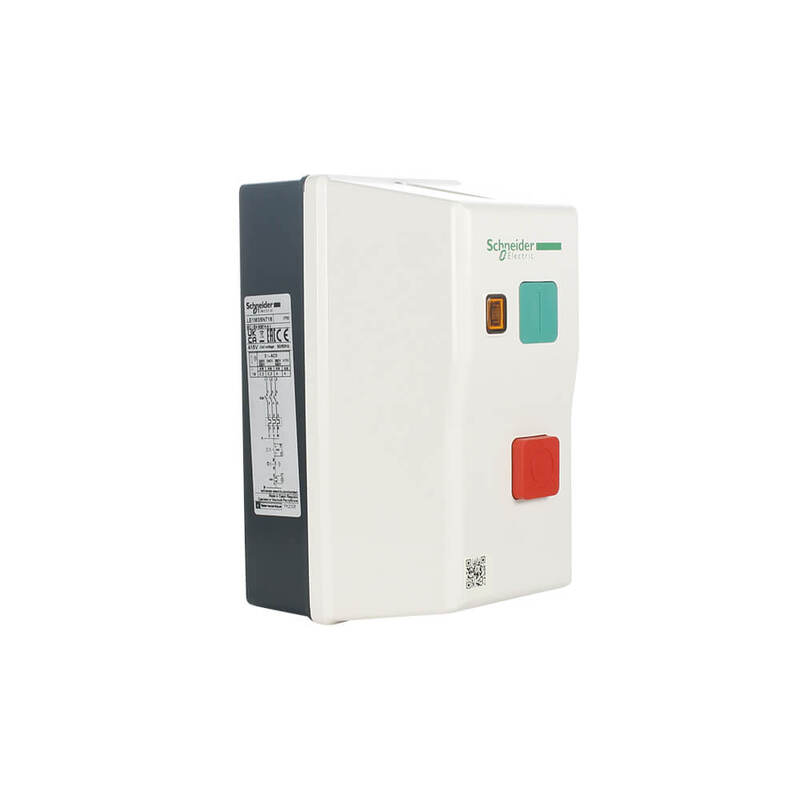

Elevate your motor control experience with the Schneider Electric LE1M35N716 TeSys Enclosed DOL Starter. This powerhouse is meticulously crafted to deliver unparalleled efficiency and reliability in motor-driven systems. Explore the key benefits that make it an essential addition to your setup and find answers to common questions in our FAQ section.
Benefits:
Precision Motor Control: The TeSys LE1M35N716 excels in controlling motors with power ratings between 8A and 11.5A, providing optimal performance for a wide range of applications.
Durable Construction: Built to last, this starter features a robust composition, including a neutral terminal, thermal overload relay, contactor, and earth terminal, ensuring durability and reliability in challenging environments.
Universal Voltage Compatibility: With a 415 V AC coil, this starter accommodates diverse voltage requirements, making it a versatile solution for different motor configurations.
Enhanced Motor Protection: The integrated thermal overload relay offers advanced motor protection against overload conditions, contributing to the overall longevity of your motor-driven systems.
Intuitive Controls: The user-friendly control interface includes a push-button start in green (I) and a stop/reset button in red (O), providing an intuitive and straightforward operation.
Versatile Applications: Suitable for the standard AC-3 utilization category, this starter is perfect for various applications, including simple soft starting scenarios.
Compact Design: The enclosed design ensures efficient use of space, making it easy to integrate into different setups without compromising performance.
High Power Handling: Capable of handling motor powers up to 4 kW at 415 V AC 50/60 Hz, this starter is a robust choice for demanding applications requiring substantial power.
FAQ:
Q: Can this starter be used for soft-starting applications?
A: Yes, the TeSys LE1M35N716 is suitable for simple soft-starting applications, providing controlled motor activation.
Q: What is the main benefit of the thermal overload relay in this DOL starter?
A: The thermal overload relay enhances motor protection by detecting and responding to overload conditions, ensuring the safety and longevity of your motor-driven systems.
Q: Is the control interface easy to operate?
A: Absolutely. The push-button start (green) and stop/reset (red) buttons offer an intuitive control interface, making operating straightforward for users.
Upgrade your motor control system with the Schneider Electric LE1M35N716 TeSys Enclosed DOL Starter—where precision meets power for an unrivalled motor control experience.
(LE1M35N716)
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
Specifications | Details |
---|---|
Range | TeSys |
Product or component type | Enclosed DOL starter |
Device application | Standard |
Utilisation category | AC-3 |
Device composition | Contactor Earth terminal Neutral terminal Thermal overload relay |
Thermal protection adjustment range | 8…11.5 A |
Motor power kW | 2.2 kW at 240 V AC 50/60 Hz 4 kW at 415 V AC 50/60 Hz 2.2 kW at 220/230 V AC 50/60 Hz 4 kW at 380/400 V AC 50/60 Hz |
[Uc] control circuit voltage | 415 V AC 50/60 Hz |
Control type | Push-button start green I Push-button stop/reset red O |
Complementary | |
Local signalling | Operating: LED (yellow) |
Cable entry number | 2 ISO20 top 2 ISO25 top 2 Pg 13 top 2 Pg 21 top 2 ISO20 bottom 2 ISO25 bottom 2 Pg 13 bottom 2 Pg 21 bottom 2 Pg 16 top 2 Pg 16 bottom |
Width | 78 mm |
Height | 160 mm |
Depth | 108 mm |
Net weight | 0.6 kg |
General | |
Material | ABS (acrylonitrile-butadiene-styrene) |
IP degree of protection | IP65 conforming to IEC 60529 |
Standards | IEC 60947-4-1 |
Ambient air temperature for operation | -5…40 °C |
Product certifications | UKCA |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | LE1M35N716 |
Barcode # | 3389110781212 |
Shipping Weight | 0.5750kg |
Shipping Width | 0.170m |
Shipping Height | 0.120m |
Shipping Length | 0.085m |
Shipping Cubic | 0.001734000m3 |
