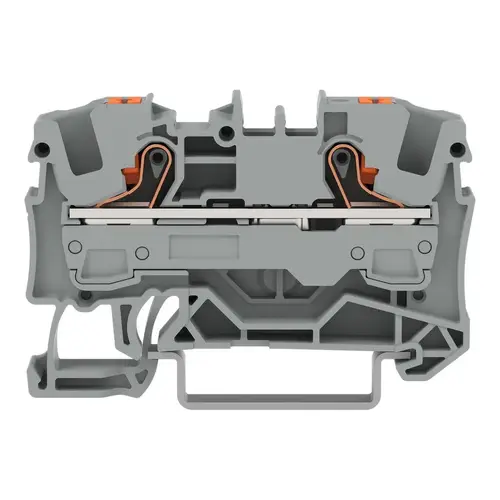

The Wago 2206-1201 is a two-conductor through terminal block with a 6mm2 nominal cross-section, supplied in a pack of 100. The 2206-1201 is rated 800V and 41A with an 8kV rated surge voltage, mounts to DIN-35 rail at 7.5mm wide, and terminates through push-button CAGE CLAMP. Wago lists the block as suitable for Ex e II applications.
Panel rail fills up faster than anyone plans for, and every terminal added competes for the same run. At 7.5mm wide the block occupies modest rail length while carrying an 800V and 41A rating. The 8kV rated surge voltage covers the transient conditions an industrial panel encounters.
Screw terminals require retorquing at commissioning and again at inspection. Push-button CAGE CLAMP actuation lands solid and stranded conductors without a driver, and the spring maintains contact pressure independently of any screw. The integrated test port accepts a probe, so a circuit is verified without disturbing terminations, and side and centre marking positions carry circuit identification.
The 2206-1201 is a grey through terminal for active and neutral conductors, not a protective earth block. Its 800V and 41A ratings set the ceiling for the circuits it may terminate. The accepted conductor range is not published on this product page, which states the 6mm2 nominal cross-section only, so confirm the range against the conductors being landed. Termination and circuit sizing are the licensed electrician's responsibility under AS/NZS 3000.
(2206-1201)
800V rated voltage with a rated current of 41A and an 8kV rated surge voltage. Those ratings set the ceiling for the circuits the block may terminate.
The product page states a 6mm2 nominal cross-section but does not publish the full accepted range. Confirm the range with Wago against the conductors being landed before ordering.
No. This is a grey through terminal for active and neutral conductors. A protective earth connection requires a green-yellow terminal block instead.
Wago lists the block as suitable for Ex e II increased safety applications. Confirm the full classification against the specific installation requirement.
It is a probe point built into the block. A circuit is verified with conductors still terminated, so nothing needs disconnecting to take a reading.
Both DIN-35 x 15 and DIN-35 x 7.5 profiles, so it suits the rail already installed in most boards and control panels.
7.5mm of rail width per position. Two connection points sit on a single level within that width.
Polyamide PA66, a thermoplastic insulating material in grey, rated from minus 60 to plus 105 degrees C.
The Wago 2206-1201 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Item Number | 2206-1201 |
| Connection Technology | Push-in CAGE CLAMP® |
| Rated Voltage | 800 V |
| Rated Surge Voltage | 8 kV |
| Rated Current | 41 A |
| Dimensions (WxHxD) | 7.5 x 57.3 x 39.5 mm |
| Operating Temperature | -60°C to +105°C |
| Material | Polyamide (PA66) |
| Flammability Class | UL94 V0 |
| Weight | 10 g |
| Quantity | 100 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 2206-1201 |
| Model # | 2206-1201 |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Brand | Wago |
| Colour | Grey |
| Rated Current (A) | 41 |
| Width (mm) | 7.5 |
| Mounting | DIN Rail |
| Voltage (V) | 800 |
| Quantity | 100 |
| Connection points | 2 |
| Rated Surge Voltage | 8kV |
