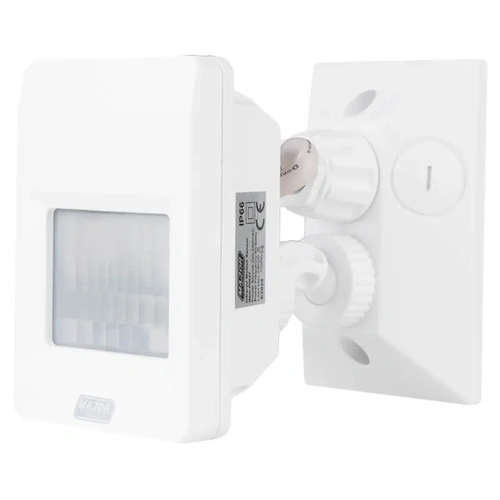

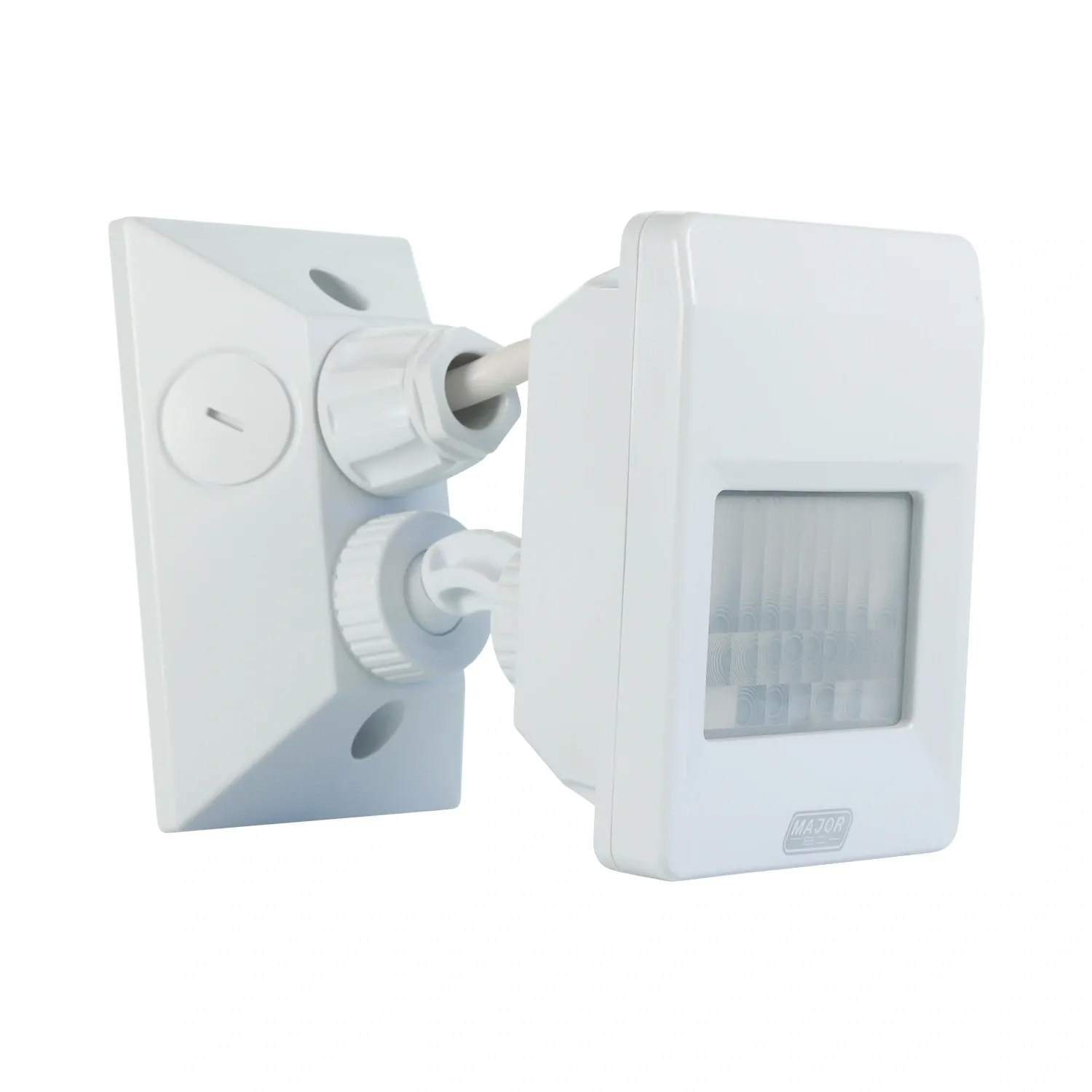

The Major Tech PIR37 is a 120° wall-mounted motion sensor designed to detect movement and body heat for automated outdoor lighting. With an adjustable range from 6 to 18 metres, it’s ideal for driveways, entrances, and perimeter lighting. It features a manual override, adjustable lux control (<3 to 2000 Lux), and time delay settings from 10 seconds to 30 minutes.
Built tough with IP66-rated weatherproofing, the PIR37 suits all-weather conditions and includes a swivel head for fine-tuning direction. It handles 2000W incandescent or 1000W LED/CFL loads and consumes less than 0.5W in standby.
PIR37 Features
PIR37 FAQ
Q: What is the detection range of the PIR37 motion sensor?
A: The PIR37 offers an adjustable detection range from 6 to 18 metres with a fixed 120° angle, making it ideal for driveways, entrances, and outdoor paths.
Q: Can the PIR37 be used for outdoor lighting automation?
A: Yes, it's IP66 rated for outdoor use and can control up to 1000W LED or 2000W incandescent loads based on motion and ambient light levels.
Q: Does the PIR37 support manual override mode?
A: Yes, the built-in manual override allows you to switch the connected light or device to remain on continuously when needed.
(PIR37)
Warranty starts from Invoice Date
5 Year Limited Warranty
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Detection Area | 120° |
Detection Distance | 6 – 18m (Adjustable) <24°C |
Detection Motion Speed | 0.6 to 1.5 m/s |
Ambient Light | <3 to 2000 Lux (Adjustable) |
Installation Height | 1.8m – 2.5m |
Voltage | 220 to 240V AC |
Power Frequency | 50/60Hz |
Rated Load | Incandescent: 2000W LED / CFL: 1000W |
Time Delay | 10 sec (±3 sec) to 30 min (±2 min) |
Power Consumption | <0.5W |
Manual Override | Yes - Sensor Mode or Continuous On |
Swivel Head | 100° - Left to Right 45° - Up/Down |
Mounting | Wall Mount |
Working Temperature | -20°C to 40°C |
Working Humidity | <93% RH |
IP Rating | IP66 (Outdoor & Indoor installation) |
Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | PIR37 |
Model # | PIR37 |
Barcode # | 6008229042546 |
Package Weight | 0.329kg |
Package Width | 0.082m |
Package Height | 0.161m |
Package Length | 0.158m |
TYPE | VALUE |
---|---|
Type | Sensor |
Brand | Major Tech |
Voltage (V) | 220-240V AC |
IP Rating | IP66 |
Time Delay | 10 sec (±3 sec) to 30 min (±2 min) |
Detection Distance | 6 - 18m (Adjustable) |
Detection Area | 120° |
Detection Motion Speed | 0.6 to 1.5m/s |
Ambient Light | <3 to 2000 Lux (Adjustable) |
Installation Height (M) | 1.8m - 2.5m |
Manual Override | Yes - Sensor Mode or Continuous On |
