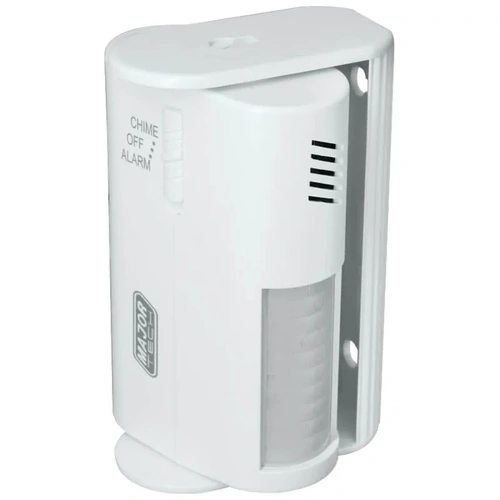

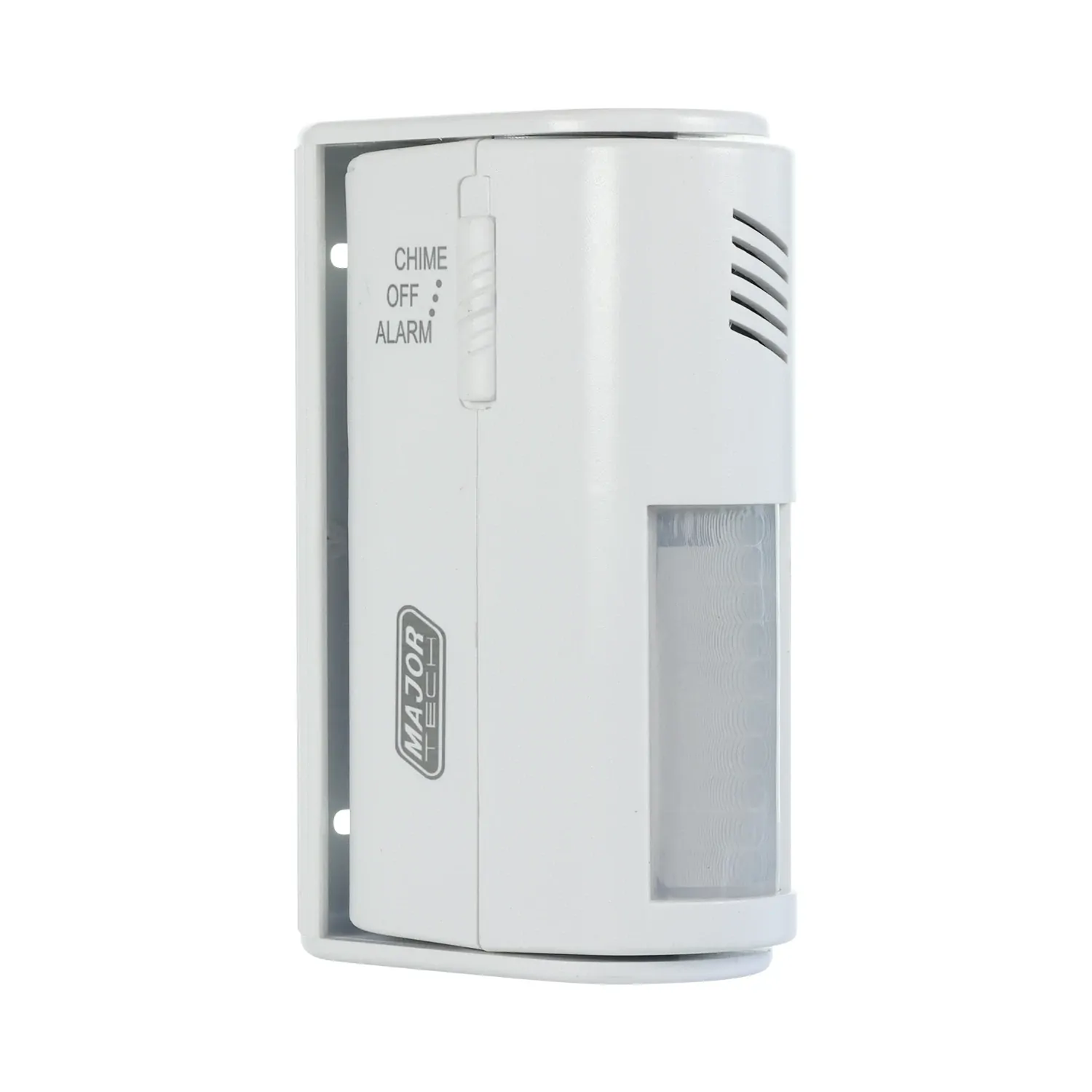

        Major Tech PIR43 | 60° Mini PIR Alarm Sensor | IP20

        The Major Tech PIR43 is a compact, portable motion sensor for basic indoor security. It uses passive infrared detection with an 8m range and a 60° angle, making it ideal for rooms, offices, sheds, and entryways.

        Powered by a standard 9V battery (not included), the PIR43 triggers a ≥70dB alarm when motion is detected. A built-in delay helps reduce false triggers, while the dual pyroelectric sensor improves accuracy by distinguishing human movement from background heat or small animals. It mounts easily to walls or ceilings and is simple to relocate as needed.

        PIR43 Features

        • 60° Detection Angle: Focused sensing for compact areas
        • 8 Metre Range: Covers small rooms, entryways, and corridors
        • ≥70dB Audible Alarm: Loud indoor alert for deterrence
        • Battery Powered: 1x 9V battery required (not included)
        • Wall or Ceiling Mountable: Flexible installation options
        • IP20 Indoor Rating: For dry, indoor environments

        PIR43 FAQ

        Q: Does the PIR43 include a battery?
        A: No, it requires a standard 9V battery that is not included.

        Q: Can it be installed on the ceiling?
        A: Yes, it supports both wall and ceiling surface mounting.

        Q: How does it avoid false alarms?
        A: The dual pyroelectric sensor improves accuracy by distinguishing human motion from background heat or small animals.

        (PIR43)

        Warranty

        Warranty starts from Invoice Date

        5 Year Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Detection Angle 60°
        Detection Range 8m
        Detection Motion Speed 0.6 – 1.5m/s
        Installation Height 1.5m to 3.5m
        Mounting Wall / Ceiling Surface Mount
        Protection Grade IP20
        Alarm Loudness ≥70 dB
        Power Consumption <100mA (Active), <40μA (Standby)
        Sensing Interval 1 Min
        Working Voltage 9V DC (6F22/6LR61 9V Battery)
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU PIR43
        Model # PIR43
        Barcode # 6008229001529
        Package Weight 0.166kg
        Package Width 0.064m
        Package Height 0.211m
        Package Length 0.147m
        TYPE VALUE
        Type Sensor
        Brand Major Tech
        Mounting Wall / Ceiling Surface Mount
        IP Rating IP20
        Detection Range 8M
        Alarm Volume ≥70 dB
        Power 9V Battery (Not Included)
        Detection Angle 60°
        Installation Height 1.5m to 3.5m
        Detection Motion Speed 0.6 to 1.5m/s
        Sensing Interval 1 Minute
