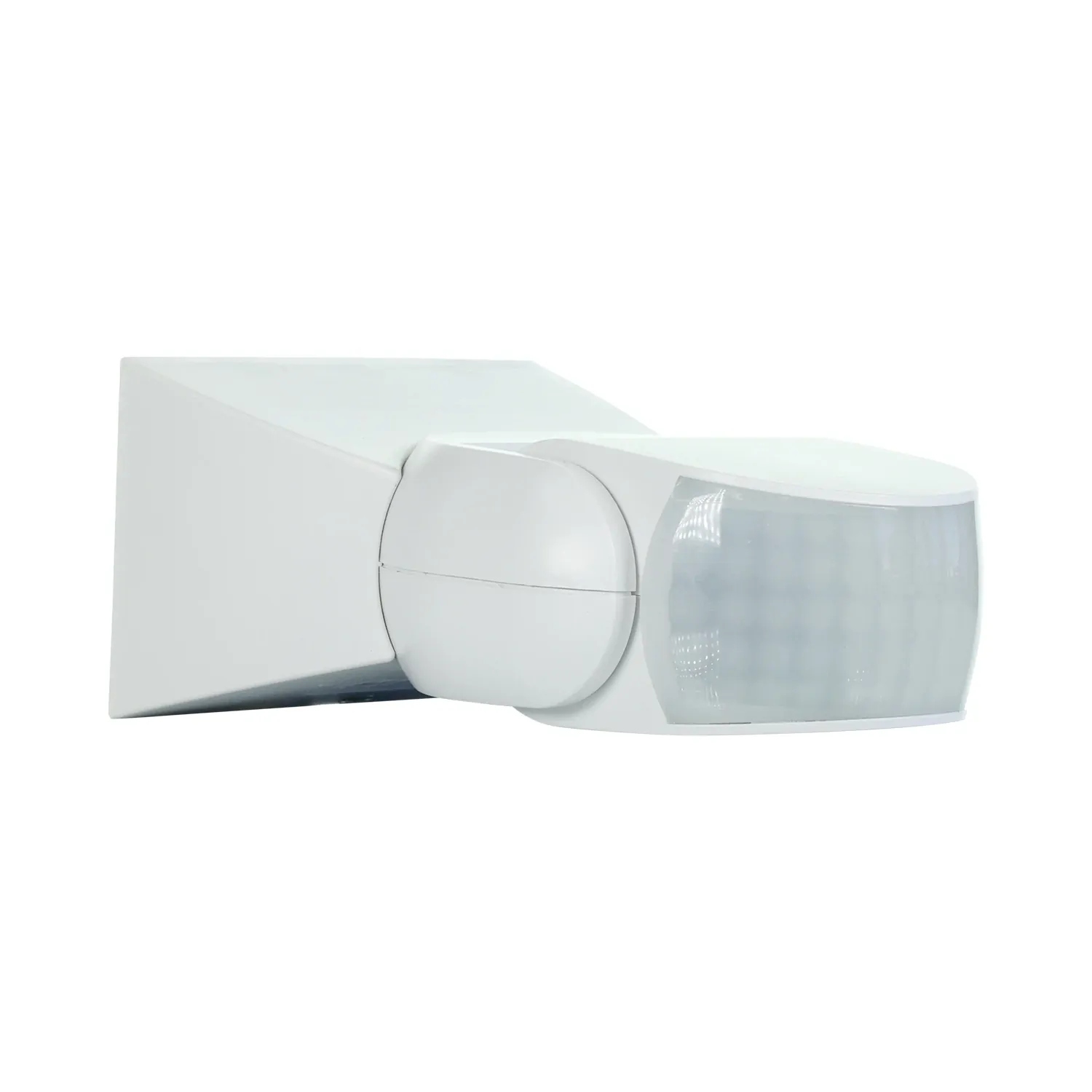

The Major Tech PIR44 is a compact 180° PIR motion sensor that automates lighting or loads when movement or body heat is detected. With a 12m detection range plus adjustable lux sensitivity and time delay, it suits corridors, entrances, driveways, and public walkways.
Built for flexibility, the swivel head allows 45° horizontal and 180° vertical adjustment, and it can be mounted to walls or ceilings. The IP65 weatherproof housing is ready for harsh outdoor environments, and the unit supports both LED/CFL and incandescent loads with low standby power.
PIR44 Features
PIR44 FAQs
Q: Can the PIR44 be used outdoors?
A: Yes. The IP65 rating ensures reliable operation in rain and dusty areas.
Q: What mounting options does it support?
A: It can be surface mounted to both ceilings and walls for flexible placement.
Q: Is it compatible with LED lights?
A: Yes. It supports up to 600W LED or CFL and up to 1200W incandescent loads.
(PIR44)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
5 Year Limited Warranty
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Detection Area | 180° |
Detection Distance | 12m Max |
Detection Motion Speed | 0.6 to 1.5 m/s |
Ambient Light | <3 to 2000 Lux (Adjustable) |
Installation Height | 1.8m – 2.5m |
Voltage | 220 to 240V AC |
Power Frequency | 50/60Hz |
Rated Load | Incandescent: 1200W LED / CFL: 600W |
Time Delay | 10 sec (±3 sec) to 15 min (±2 min) |
Power Consumption | <0.5W |
Swivel Head | 45° - Left to Right 180° - Up/Down |
Mounting | Ceiling & Wall Mount |
Working Temperature | -20°C to 40°C |
Working Humidity | <93% RH |
IP Rating | IP65 (Outdoor & Indoor Installation) |
Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | PIR44 |
Model # | PIR44 |
Barcode # | 6008229026911 |
Package Weight | 0.196kg |
Package Width | 0.074m |
Package Height | 0.136m |
Package Length | 0.085m |
TYPE | VALUE |
---|---|
Type | Sensor |
Brand | Major Tech |
Mounting | Wall / Ceiling Surface Mount |
Voltage (V) | 220 to 240V AC |
IP Rating | IP65 |
Time Delay | 10 sec (±3 sec) to 15 min (±2 min) |
Detection Distance | 12m Max |
Detection Area | 180° |
Detection Motion Speed | 0.6 to 1.5m/s |
Ambient Light | <3 to 2000 Lux (Adjustable) |
Installation Height (M) | 1.8m - 2.5m |
